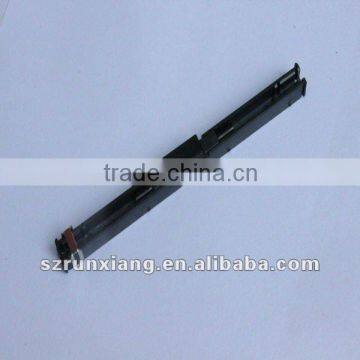

ftth fiber optical colde shrink mechanical splice

FOB Price

Negotiable / Piece

3000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	szrunxiang
Model Number	ftth splice

1.ftth fiber optical splice
2.no need any other stool
3.easy and fast installation
4.fiber mechanical splice

Features

1. The alternative site preset optical fiber connectors docking type thoroughly, and reduce the cost.

2. the connect time is less than 40 seconds (including optical fiber preparation).

3. In some sealing technology, use fixed number of year more than 30 years.

4.tensile strength is greater than 9 kg, can be directly connected with ONU.

5. For fiber optic cable damaged (tensile and rat bite, etc.) or corridor to the skin in the cable.

Product description

Test project	Technology parameters
Applicable scope	φ0.25 mm &φ0.90 mm fiber
Fiber diameter	125μm ( 657A & 657B )
Tight cladding diameter	250μm & 900μm
Applicable mode	Single mode& multimode
Operating time	about 10s(do not contain fiber processing)
Insertion loss	≤ 0. 10dB(1310nm & 1550nm)
Return loss	≤ -40dB
Naked fine solid tight force	>5 N
Tight packet layer clamping forces	>8 N
Using temperature	-40~+75°C
Repeated use (ten times)	ΔIL ≤ 0.2dB Δ RL ≤ 5dB
