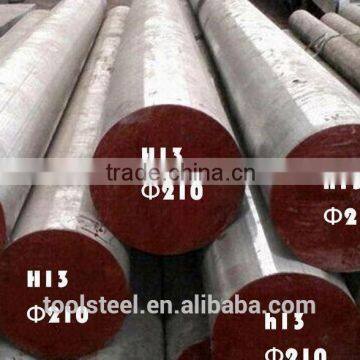

Top Quality Astm H13 Steel Round Bar/ H13 Hot Die Steel

1.Specification of H13 steel

       Round bar

Diameter(mm)

Length (mm)

12~180

2000~5800

         Plate

Thickness(mm)

Width (mm)

Length (mm)

20~70

105~610

2000~5800

The specification can be customised!

2.Chemical compositon of H13 steel

NO.

C

Mn

Si

Cr

W

V

P

S

Aisi H13

0.32~0.45

0.20~0.50

0.10~0.50

0.80~1.20

--

0.80~1.20

≤0.030

≤0.030

3.Delivery condition

Standard Number

   Annealing

    Heat treatment temp( °C )

HRC Secondar Hardness

H13/1.2344/SKD61

≤235

  Hardening: 1020

Tempering: 530~560

47~54

4.Heat treatment

1.Quench:1000-1040`C via 600`C and 850`C, preheating oil or wind cooling

2.Temper temperature should be higher than working temperature in order to stabilize the working size of mold

3.Heat up to 650°C of average temperature in order to eliminate the machined stress, 500  °c air cooling after electric cooker cooling

4.Tempering, 800-850  °c ,slow cooling after diathermia

5. Melting Process of SKD61 steel rod

1.EAF: Electric Furnace+LF+VD(Optional)

2.ESR:  Electric Furnace+LF+VD+Eleroslag Remelted(Optional)

UT Class of SKD61 steel rod

5.Characteristic of H13 steel

(1)Harden and air cooling steel, 600`C work, high rigidity, high endurance, anti-heating, anti-cracking

(2)Electric sediment and middle-melting steel

(3)Compact structure, refined in electric cooker

(4)Quality of steel is pure, owned good character of equal direction

6.Application

(1)Thickness of not more than 2MM sheet, efficient blanking die, punch die and pressure die etc.

(2)All kinds of scissors, inserts, woodworking blade.

(3)Thread rolling die and wear-resistant slider.

(4)Cold Heading Die, thermosetting resin molding.

(5)Molding in deep drawing cold extrusion dies.

(6)For pounch mold,knife mold,screw mold,chinaware mold.

Hot work tool steel

DIN

1.2344,1.2343,1.2365,1.2581,1.2367,1.2713 etc.

AISI

H13,H11,H10,H21, etc.

JIS

SKD61,SKD6,SKD5,SKT4 etc.

Cold work tool steel

DIN

1.2601,1.2379,1.2080,1.2363,1.2842,1.2419,1.2510,1.2550,1.2767 etc.

AISI

D2,D3,D5,D6,D8,A2,O2,O1 etc.

JIS

SKD1,SKD11, SKS3 etc.

Plastic mould steel

DIN

1.2083,1.2311, 1.2316,1.2738 etc.

AISI

P20, P20+Ni, 420 etc.

JIS

NAK80

High speed tool steel

DIN

1.3355,1.3343

AISI

T1,M2,M35,M42

JIS

SKH2,SKH51

Structural alloy steel

DIN

1.7225,1.6511,1.7035,1.7220

AISI

4,140,434,051,404,130

JIS

SCM440
