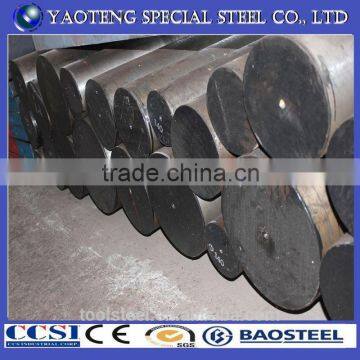

aisi 4140 carbon alloy steel/4140 steel round bar

   Round bar

Diameter(mm)

   Length (mm)

     10~1000

   2000~6000

   plate/sheet

Thickness(mm)

    Width (mm)

  Length (mm)

     10~1000

     80~2300

   2000~6000

C

Si

Mn

P≤

S≤

Cr

Ni≤

Mo

0.35~0.45

0.20~0.40

0.50~0.70

  0.025

  0.025

0.90~1.10

0.025

0.10~0.30

Chinese

American

German

Swedish

Japanese

GB

AISI

DIN

ASSAB

JIS

42CrMo

4140

1.7225

SCM440

Preheat the steel carefully, then raise the temperature to 1150-1200°C for forging. Do not forge below 850°C.

Heat the AISI 4140 slowly to 800-850°C and allow enough time for the steel to be thoroughly heated. Cool slowly in the furnace to 480°C followed by air cooling.

When parts are heavily machined, ground or otherwise subject to cold work, stress relieving will be beneficial prior to hardening.

AISI 4140 steel is usually supplied ready heat treated to 18-22HRC. If further heat treatment is required annealed AISI 4140 should be heated slowly to 840-875°C and after adequate soaking at this temperature quench in oil. Temper as soon as the tools reach room temperature.

Heat the AISI 4140 carefully to a suitable temperature selected by reference to a tempering chart or table (usually between 550-700°C, soak at the temperature for 2 hours per 25mm of ruling section, then allow to cool in air. Tempering between 250-375°C is not advised as tempering within this range will seriously reduce the impact value.

(*at room temperature heat treated to 18-22HRc)

Heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each AISI 4140 steel component. Other considerations during the heat treatment process include the type of furnace, quenching medium and work piece transfer facilities. Please consult your heat treatment provider for full guidance on heat treatment of alloy steel.
