New Technology Pex/al/pex Water Composite Pipe
- ningbo/shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Lifeng | |
| Model Number | L1216/1620/2025/2026/2632 | Material | pex and aluminum | |
| Heat Conductivity | 0.45w/mk | Specification | L1216/1620/2025/2026/2632 | |
| Linear Expansion Coefficient | 0.025mm/mk | Outer Diameter | 16~32mm | |
| Length | 50~500m | Thickness | 2.0~3.0mm | |
| Standard | ISO9001/14001,CE,DIN | Color | White,Red,etc |
Product Description
New technology pex/al/pex water composite pipe
Temp. rating:-40~95 degree
Working pressure:1.25Mpa 1.6Mpa 2.0Mpa 2.5Mpa
PEX aluminum details

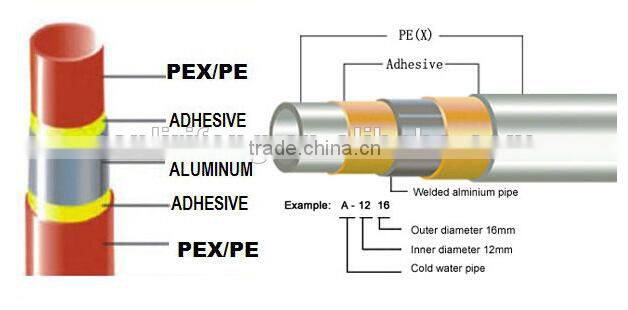

PEX-AL-PEX pipes, or AluPEX, or PEX/Aluminum/PEX, are made of a layer of aluminum sandwiched between two layers of PEX. The metal layer serves as an oxygen barrier, stopping the oxygen diffusion through the polymer matrix, so it cannot dissolve into the water in the tube and corrode the metal components of the system. The aluminum layer is thin, typically 1 or 2 mm, and provides some rigidity to the tube such that when bent it retains the shape formed (normal PEX tube will spring back to straight). The aluminum layer also provides additional structural rigidity such that the tube will be suitable for higher safe operating temperatures and pressures.
Features
2) Non-toxic, anti-corrosive
3) Light weight, strong mechanical properties and thermal-resistant ability
4) Low fragile humidity and long using life
5) Low flowing resistance inside the pipe, scaling can rarely happen
6) The fluids cannot be contaminated and effective diameters are big
7) Oxygen is 100% isolated and infiltration is thoroughly prevented. In case they are used as shielding materials for telecommunication circuit, magnetic interference can be prevented
8) Anti-static, and suitable for gas and fuel transportation
9) Can be bended or straightened without restriction
Packing
1. Normally, we will apply polyethylene bag and carton.
2. We can also arrange it according to customers’ requirements.
3. Different packing will appear to different products.
