High Quality PERT/AL/PERT Flexible Pipe

FOB Price

US$ 0.1 - 1 / Meter

10000 Meters(Min. Order)

Port ningbo/shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	LiFeng
Model Number	LF1216/1418/1620/2025/2026/2632	Material	pert aluminium
Heat Conductivity	0.45w/mk	Specification	LF1216/1418/1620/2025/2026/2632
Linear Expansion Coefficient	0.025mm/mk	Outer Diameter	16~32mm
Length	50/100/200m/coil	Thickness	2.0~3.0mm
Standard	ISO9001/14001,CE	Color	White,Red,etc

Product Description

High quality PERT/AL/PERT flexible pipe

PERT pipe parameters

(PERT-AL-PERT) pipe catalogue

Products	specif ication	O.D (mm)	I.D (mm)	wall thickness (mm)	PN Mpa	Length /roll(m)
pipe (PERT-AL-PERT)	1216	16	12	2	2	150
	1418	18	14	2	2	100
	1620	20	16	2	2	100
	2025	25	20	2.5	2	50
	2632	32	26	3	2	50
	3340	40	33	3.5	2	120

100% diffusion-resistant Multilayer composite (MLCP) pipe, five layer (PERT-adhesive agent -Continuously overlapped welded aluminum-adhesive agent-PERT), for general plumbing, under floor heating and radiator-connection applications. Manufactured to the strictest European standard.

---------------------------------------------------------------------------------------------------------------------------------------------------------------

The materials used to form the pipe are as follows:

· Outer Layer: Polyethylene raised temperature (PE-RT) plastic coat: protects the aluminum core and allows the outer shell to be colored without contaminating the water.

· Adhesive layer: interface zone between the outer PE-RT layer and the aluminum core. Bonds the material together and prevents shear slippage.

· Aluminum layer: thin layer of lap welded aluminum which forms a 100% oxygen barrier to protect against corrosion and allows the pipe to have the ‘form-stable’ characteristic.

· Adhesive layer: interface zone between the inner PE-RT layer and the aluminum core. Bonds the material together and prevents shear slippage.

· Inner layer: inner layer of clear PE-RT. Inert and does not affect the water in any way. Allow for a smooth wall surface to reduce pressure drops for water flow.

Application Fields

1. Hot water and cold water pipe for production and domestic use;
2. Heating pipe, pipes used for heating installation on floor and wall, snow-melting devices for buildings in northern, park, airport, and so on;
3. Pipe used for solar energy water heater;
4. Coal gas and natural gas pipe;
5. Drinking water within a certain district, pipe used for reclaimed water project;
6. Piped used for central air conditioner, fan coil;
7. Industrial pipes used for oil transportation and cooling fluid;
8. Pipes used for sleeve of wire or cable;
9. Pipe/tube used for oxygen input in hospital;
10. Pipes used for irrigation project in agriculture or garden;
11. Pipes used for gas suction under condition of vacuum;
12. Tubes used in beverage factory for edible fluid

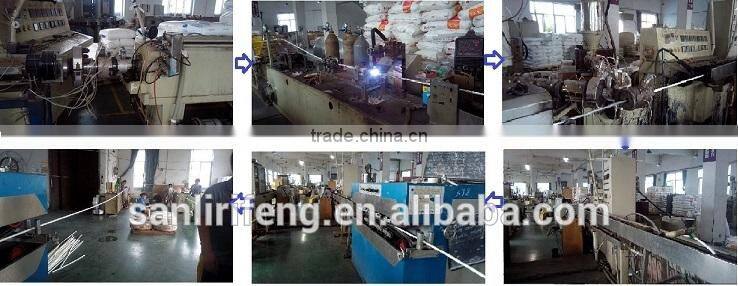

Procedure line

Our company

Packaging & Shipping

Packing Information

1. Normally, we will apply polyethylene bag and carton.

2. We can also arrange it according to customers’ requirements.
3. Different packing will appear to different products.

Transport Information

size	meter	coil size	carton size
1216	100m	18.54646cm	194848cm
1216	200m	18.57070cm	197171cm
1418	100m	18.55050cm	195252cm
1620	100m	18.55757cm	196060cm
2025	100m	208484cm	218686cm
2026	100m	208888cm	218989cm
2632	50m	25100100cm	26102102cm
