1216 OEM/ODM UV Protect Pert al Pert Gas Pipe

1216 OEM/ODM UV protect pert al pert gas pipe

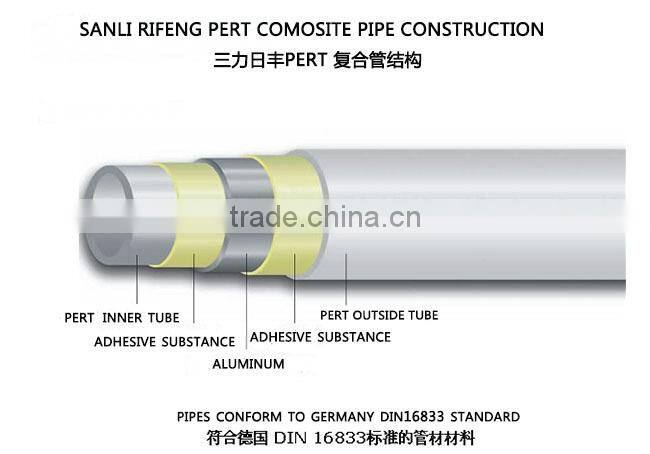

The materials used to form the pipe are as follows:

· Outer Layer: Polyethylene raised temperature (PE-RT) plastic coat: protects the aluminum core and allows the outer shell to be colored without contaminating the water.

· Adhesive layer: interface zone between the outer PE-RT layer and the aluminum core. Bonds the material together and prevents shear slippage.

· Aluminum layer: thin layer of lap welded aluminum which forms a 100% oxygen barrier to protect against corrosion and allows the pipe to have the ‘form-stable’ characteristic.

· Adhesive layer: interface zone between the inner PE-RT layer and the aluminum core. Bonds the material together and prevents shear slippage.

· Inner layer: inner layer of clear PE-RT. Inert and does not affect the water in any way. Allow for a smooth wall surface to reduce pressure drops for water flow.

Product parameters

Thermal conductivity ------------------------------------- 0.45W/m.k

Thermal Expansivity -------------------------------------- 2.5 x 10^-5 m/m.k

Bend Radius -------------------------------------------------- ≥ 5D (D: Tube Diameter)

Operating Temp Range --------------------------------- -40 - +95°c

Working Pressure ------------------------------------------ ≤ 1.25Mpa

Radial Force Penstock ---------------------------------- 2400 - 3320N

Bursting Strength ------------------------------------------ 5.5 - 8Mpa

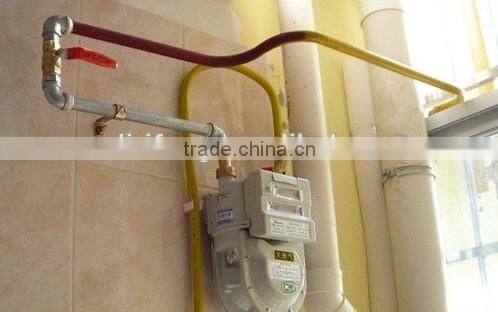

Application

1) Potable water For cold and warm water installations

2) For rainwater utilization systems

3) For compressed air plants

4) For swimming pool facilities

5) For solar plants

6) For agriculture and horticulture

7) Heating pipes for residential housing

8) For industry
