Aluminum Foil Mylar Adhesive Tape HVAC
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | V.E | |
| Model Number | A-S40 | Type | HVAC Systems |
Product Description
Specifications
Aluminum Foil Mylar Adhesive Tape HVACaluminum foil,fiberglass cloth,adhesive , release paper .
HVAC industry

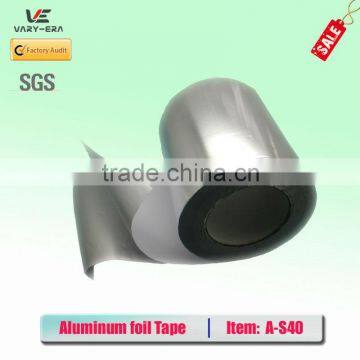

Aluminum Foil Mylar Adhesive Tape HVAC
Item : A-S40
Structure : Aluminium foil, flame retardant acrylic adhesive
Description : High tensile strength aluminium foil backing, combines with a high
performance solvent acrylic adhesive
Characristic : Excellent reflection of both heat and light
High quality adhesive for permanent sealing and bonding on
Foil-scrim-kraft facing joints and seams in HVAC duct work application
Low moisture vapor transmission rate for excellent sealing and patching performance
Good aging resistance both indoor and outdoors.
Energy saving and environmental protection.
Application : Used for joining foil faced glass fiber or rock-wool insulation panels
Sealing of air conditioning and cool/warm air flow ducting
Sealing joints in ducting providing a flame retardant & vapor proof barrier
Ideal for quick repairs of gutters, down pipes
Widely used in HVAC industry such as air condition, refrigerator and
water heater etc
Size : Cut roll: 48/50mm (2”) 60/63(2.5”) 72/75mm(3”) 96/100mm(4”)
Log roll: 1200mmx45/50m
Jumbo roll: 1200mmx500m/750m
Typical Physical Properties:
Properties | Metric | English | Test Method |
Backing Thickness | 30Micron | 1.2mil | PSTC-133/ASTM D 3652 |
Total thickness | 60micron | 2.4mil | PSTC-133/ASTM D 3652 |
Adhesion to steel | 20N/25mm | 72 Oz./in. | PSTC-101/ASTM D 3330 |
Tack Rolling Ball | 15cm | 6.0in. | PSTC-6/ASTM D 3121 |
Tensile Strength | 40N/25mm | 10.2Lb/In | PSTC-131/ASTM D 3759 |
Elongation | % | 3.0 | PSTC-131/ASTM D 3759 |
Service Temperature | -30~+120°C | -22~+2480F | --------------- |
Applying Temperature | +10~40°C | +50~+1050F | --------------- |
