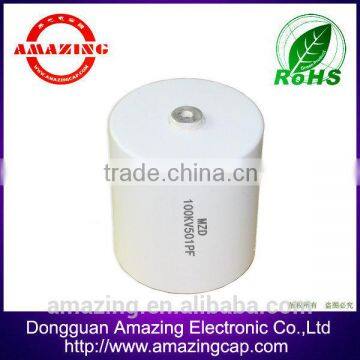

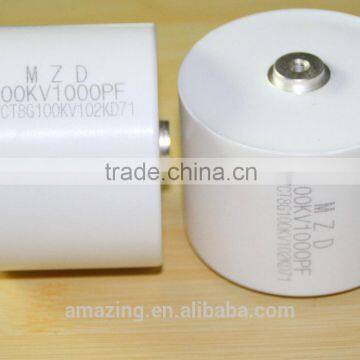

China Manufacturer High Voltage Class 1 Ceramic Capacitor 100kV500pF, Screw Terminal Mounting, Doorknob

China manufacturer High Voltage Class 1 Ceramic Capacitor 100kV500pF, Screw Terminal Mounting, Doorknob

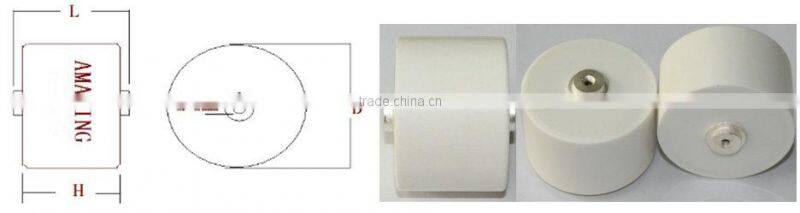

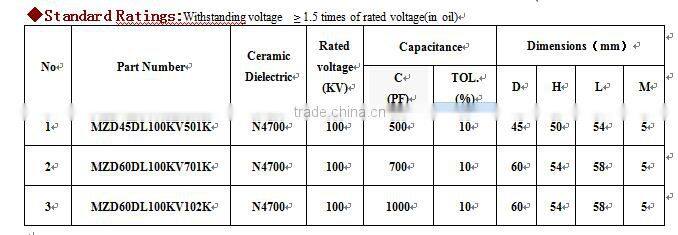

2.Catalog of the 100KV high voltage screw ceramic capacitors :

(Remark: If you have any other requirements on the specification of the capacitors, we are able to supply different models according to your requirements.)

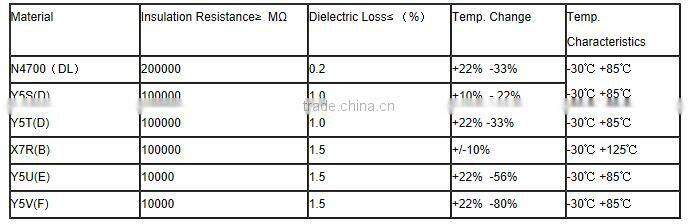

3. Dielectric of the 100KV high voltage screw ceramic capacitors :

Introducing you the materials of the high voltage disc ceramic capacitors so that you can find the favorite capacitor.

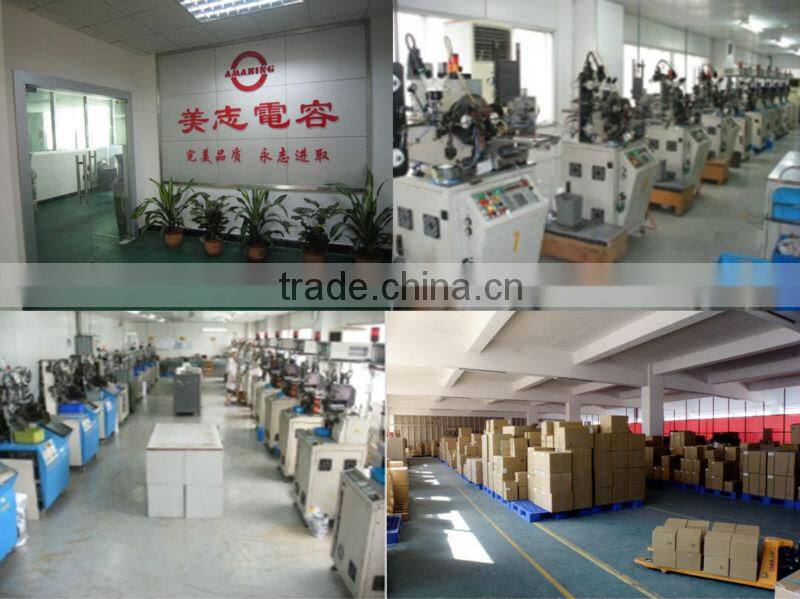

4. 100KV high voltage screw ceramic capacitors -Production department  :

Amazing Technology has specialized in the high voltage ceramic capacitors for 13 years, the final goal is to make the high quality, high standard capacitors for our customers.

The professional engineers, The most advanced technology help us make the best high voltage ceramic capacitor.

5. Application of the 100KV high voltage screw ceramic capacitors  :

Our high voltage ceramic capacitors are made up of military materials and have the following characteristics: super high voltage and super high frequency,low partial discharging(PC),small insulation resistance.Our high voltage ceramic capacitor are applicable to aviation spacecraft, intelligent power grid, step-up and voltage-multiplying circuit, and digital circuit as measuring boxes, police equipment, X-ray machine, CT machine and so on medical equipment, security detecting equipment, electric power equipment, instruments and meters, mechanical equipment, anion generator, high voltage generator,etc..

Examples:

6. 100KV high voltage screw ceramic capacitors - Picture of customers visiting :

High quality, High standard is always the goal of the high voltage disc ceramic capacitor in Amazing. Also, we have the good reputation from both the foreign and domestic customers, which give us the confidence and motivation, So we will do our utmost to make the capacitor.

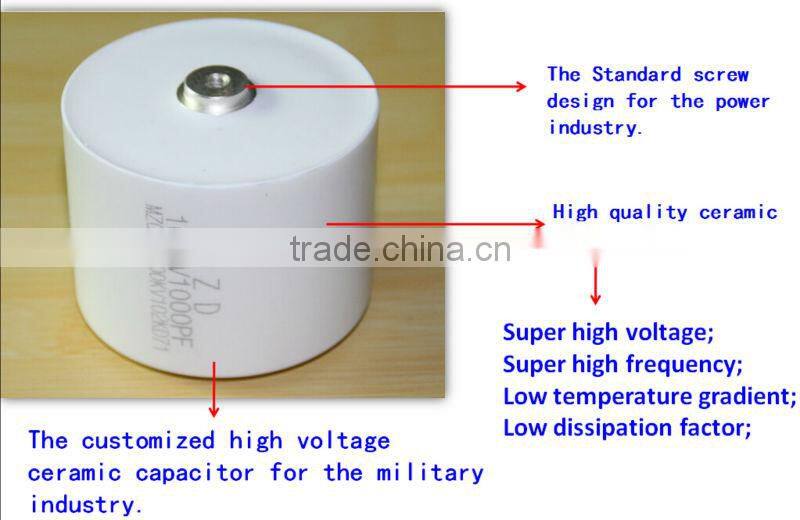

7. Why you should choose Amazing’s  high voltage screw ceramic capacitors  :

1.  High quality military material, Super high voltage and low PC

2.  The performance of our capacitor has been tested by the professional institute of CAS(Chinese Academy Of Sciences),we have the best capacitors.

3.  Please be rested that part of our high voltage ceramic capacitor is customized for the domestic military institute.

4.  The most professional engineers, the most advanced technology.

8. The requirements on the 100KV high voltage screw ceramic capacitors  :

1.Rated voltage _____KV DC or __________KV AC;

2.Capacitors operating frequency: __________HZ;

3.Capacitor Capacitance: __________ PF; range of operating temperature: __________° C;

4.The capacitor can work in __________( Transformer oil, SF6, Epoxy resin and Air)

5.Size: diameter ______ mm, thickness _____ mm;

(Remark: We are able to supply different models according to customer’s requirements.)
