Electrical Equipment for AC/DC High Voltage Ceramic Capacitor
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Voltage Blue Disc Ceramic Capacitor 30KV 300PF for Electronics Component
-
High Voltage Blue Disc Ceramic Capacitor 30KV 2500PF Ceramic Condensador
-
High Reliability 30kv High Voltage Capacitor Bank, Class 1 Ceramic China Manufacture
-
Ccg81condensador Ceramic 15kv 500pf 15kva China Manufacture
-
Good Quality High Voltage Power Ceramic Capacitor for Heating Welding Machine/ Microwave
-
Good Quality Capacitor of 500PF 15KV 40KVA Ceramic Power Capacitor High Voltage
Product Details
| Place of Origin | Guangdong, China | Brand Name | amazing | |
| Model Number | MZD-ceramic capacitor | Type | Ceramic Capacitor | |
| Application | Hight Voltage | Package Type | Through Hole | |
| Capacitance | 1000PF | Rated Voltage | 50KV AC | |
| Operating Temperature | -40'C~+125'C |
Product Description
Electrical Equipment For AC/DC high voltage ceramic capacitor
To ensure that providing our best servies, pls kindly advise the information as follows:
(Remark: We are able to supply different models according to customer’s requirements).
1.what circumstances will you use High Voltage Capacitor in? (transformer with oil - epoxy in -SF6 gases - nitrogen - Other)
2.which roles does High Voltage Capacitor mainly play for your device (partial pressure -? Doubler?- Coupling ?- Filter ?- Other)
3.High Voltage Capacitor will work in the frequency or high frequency _______KHZ environment;
4.Do you have requirements on the size of High Voltage Capacitor(diameter -? Height ?- Screw thread?-shape?- Other)
5.High Voltage Capacitor will work within ________ to ________ degree temperature range?
6.You will press ____ volatge________minute to test High Voltage Capacitor?
7.You will use __(volatge)___kv to test partial discharge of High Voltage Capacitor?
8.You will use __(volatge)___kv to detect lightning impulse voltage of High Voltage Capacitor?

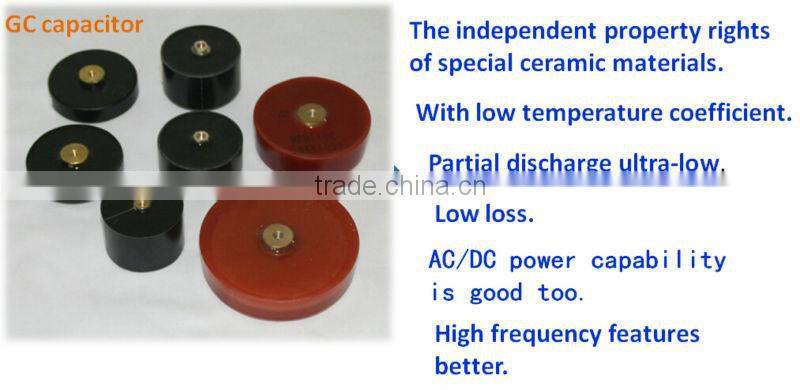

Advantage---high voltage capacitor :
The independent property rights of special ceramic materials.
With low temperature coefficient.
Partial discharge ultra-low.
Low loss.
AC/DC power capability is good too.
High frequency features better.
Catalog---high voltage capacitor :
No. | Part Number | Ceramic Dielectric | Rated voltage(KV) | Capacitance | Dimensions(mm) | ||||
C(PF) | TOL.(%) | D | H | L | M | ||||
1 | MZCT8G10KVDL102K | N4700 | 10 | 1000 | 10 | 25 | 16 | 20 | 5 |
2 | MZCT8G10KVDL202M | N4700 | 10 | 2000 | 20 | 32 | 16 | 20 | 5 |
3 | MZCT8G15KVDL102K | N4700 | 15 | 1000 | 10 | 32 | 18 | 22 | 5 |
4 | MZCT8G20KVDL102K | N4700 | 20 | 1000 | 10 | 32 | 20 | 24 | 5 |
5 | MZCT8G20KVDL402M | N4700 | 20 | 4000 | 20 | 61 | 20 | 24 | 5 |
6 | MZCT8G30KVDL102K | N4700 | 30 | 1000 | 10 | 40 | 22 | 26 | 5 |
7 | MZCT8G30KVDL202M | N4700 | 30 | 2000 | 20 | 56 | 26 | 30 | 5 |
8 | MZCT8G30KVDL302M | N4700 | 30 | 3000 | 20 | 56 | 26 | 30 | 5 |
9 | MZCT8G30KVDL502M | N4700 | 30 | 5000 | 20 | 56 | 26 | 30 | 5 |
10 | MZCT8G30KVDL303M | N4700 | 30 | 10000 | 20 | 62 | 26 | 30 | 5 |
11 | MZCT8G30KVDL203M | N4700 | 30 | 20000 | 20 | 62 | 22 | 26 | 5 |
12 | MZCT8G40KVDL102K | N4700 | 40 | 1000 | 10 | 45 | 30 | 34 | 5 |
13 | MZCT8G40KVDL202M | N4700 | 40 | 2000 | 20 | 62 | 30 | 34 | 5 |
14 | MZCT8G40KVDL302M | N4700 | 40 | 3000 | 20 | 62 | 30 | 34 | 5 |
15 | MZCT8G40KVDL503M | N4700 | 40 | 5000 | 20 | 62 | 30 | 34 | 5 |
16 | MZCT8G50KVDL102K | N4700 | 50 | 1000 | 10 | 45 | 32 | 36 | 5 |
17 | MZCT8G120KVDL102K | N4700 | 120 | 1000 | 20 | 66 | 81 | 85 | 5 |
18 | MZCT8G150KVDL801K | N4700 | 150 | 800 | 20 | 70 | 81 | 85 | 5 |
Note:Other specifications are also available on request. | |||||||||
Application in AC---high voltage capacitor :
1.The capacitor has succeed in being used for the project of 1100KV AC and DC substation in Qinghai, To keep the substation operating normally as the On-line monitor and protector;
2.The capacitor has also successfully applied to the test instrument for high voltage partial discharge in the state grid of China, to test the partial discharge for the 110KV cable.
3.NanRui company of the state grid has applied the capacitor as the voltage divider of capacitance voltage transformer, the accuracy can reach to 0.2%;
4.There are many factory of CVT and switch transformer who has used the capacitor in the domestic market. Which is considered as the acquisition of signal.
5.The capacitor has been used to the project of smart grid, which is the core block of digital metering box.
Application in DC---high voltage capacitor :
1.The base of bombs and one satellite-China Academy of Engineering Physics, they put High Glass-Ceramic Voltage Capacitor used in their latest laser and electromagnetic weapons, as the high voltage power supply.
2.Some Universities, for instance the Harbin Institute of Technology, Shanghai Jiaotong University, HUST and National defense science and technology University and other military institutions adopt High Glass-Ceramic Voltage Capacitor in their Military products.
3.Cooperating with major domestic manufacturers of X-ray machines and non-destructive detection of manufacturers, as a high-frequency voltage doubler power supply applications.
4.High Glass-Ceramic Voltage Capacitor is applied in the requirements on the temperature field of strict Industrial science and technology such as oil drilling equipment, satellites, spacecraft, etc.
5.High Glass-Ceramic Voltage Capacitor is used for all types of AC to DC high voltage equipments, as the power supply voltage doubler.
AC | DC |
Capacitive voltage transformer | carrier |
insulator / electrical insulator | coupler |
high voltage circuit breaker | high voltage DC generator/direct-current high voltage generator |
high voltage switch gear | voltage-multiplier circuit |
high voltage tension transfomer | voltage doubler |
smart substation / digital substation | signal amplification / signal multiplication |
super grid | UHVDC Ultra high voltage direct current |
power transmission and transformation station | electric precipitator /electrostatiprecipi-tator |
UHVDC / ultra high voltage direct current | high frequency electric source |
electric precipitator / electrostaticprecipi-tator | voltage and frequency high voltage power supply |
smart-grid | peaking plant / peaking power source |
smart meter / intelligent meter /intelligent electric meter | anion generator / air negative-ion generator |
carrier | inverter power |
bleeder circuit / voltage bleeder circuit | high frequency welder |
voltage divider | high frequency quenching |
shunt / splitter / diverter | medical power / medical power supply / mri generator |
voltage-multiplier circuit | high voltage power supply |
voltage-multiplier circuit | X-ray machine |
signal amplification / signal multiplication | CT machine / light speed VCT |
coupler | electric welding machine |
| electrostatic generator |
| lon generator |
| electromagnetic pulse weapons |
| electromagnetic gun |
| laser generator |
| laser gun |
| high voltage generator |
| DC power |
Material---high voltage capacitor :
Material | Insulation Resistance≥ MΩ | Dielectric Loss≤ (%) | Temp. Change | Temp.Characteristics |
N4700(DL) | 200000 | 0.2 | +22% -33% | -30°c +85°c |
Y5S(D) | 100000 | 1.0 | +10% -22% | -30°c +85°c |
Y5T(D) | 100000 | 1.0 | +22% -33% | -30°c +85°c |
X7R(B) | 100000 | 1.5 | +/- 10% | -30°c +125°c |
Y5U(E) | 10000 | 1.5 | +22% -56% | -30°c +85°c |
Y5V(F) | 10000 | 1.5 | +22% -80% | -30°c +85°c |
The Five Advantages of High Voltage Capacitor :
1.Zero Partial Discharge at rated work voltage range
2.capacitance shift rate is only 3% at -40 to +150 temperature range
3.Strong withstand voltage, Can withstand more than 5 times the rated working voltage of the Lightning impulse.
4.Small size, it is our best Advantage Relatively thin film capacitor.
5.Can be test at 3 times withstand voltage.
BUY HIGH VOLTAGE CAPACITOR,WHY CHOOSE AMAZING ELECTRONIC
1.Originated from amazing, The only global.
2.Amazing have strong Research and development team and technology strength, Constantly rolling out many new product of high voltage ceramic capacitors.
3.Amazing have 8 years history , focused on Research and production of high voltage ceramic capacitor all the time.
4.Amazing have clear goals : focus on high voltage high frequency. Service for electric power and military project.
5.Amazing have professional sale team servicing for you intimately at anytime.
Production department---high voltage capacitor :
Amazing Technology has specialized in the high volatage ceramic capacitors for 13 years, the final goal is to make the high quality, high standard capacitors for our customers.
The professional engineers, The most advanced technology help us make the best high volatage ceramic capacitors.
Customers visiting---high voltage capacitor :
High quality, High standard is always the goal of the high volatage ceramic capacitors in Amazing. Also, we have the good reputation from both the foreign and domestic customers, which give us the confidence and motivation, So we will do our utmost to make the capacitor.
