High Voltage Class 1 Ceramic Capacitor 20kV 500pF, Doorknob, Screw Terminal Mounting
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China Manufacturer High Voltage Class 1 Ceramic Capacitor 100kV500pF, Screw Terminal Mounting, Doorknob
-
10KV 101 100pf High Voltage Ceramic Capacitor
-
China Manufacturer 20KV 151 150pf High Voltage Ceramic Capacitor
-
High Voltage Class 1 Ceramic Capacitor 20kV500pF, Screw Terminal Mounting Made in China
-
China Manufacturer High Voltage Class 1 Ceramic Capacitor 100kV 1000pF, Screw Terminal Mounting, Doorknob
-
China Manufacturer 10KV 222 2200pf High Voltage Ceramic Capacitor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Amazing | |
| Model Number | MZG160D | Type | Ceramic Capacitor | |
| Application | Hight Voltage | Package Type | Through Hole | |
| Capacitance | 100PF~1000PF | Rated Voltage | 1KV~30KV | |
| Operating Temperature | -40C~85C |
Product Description

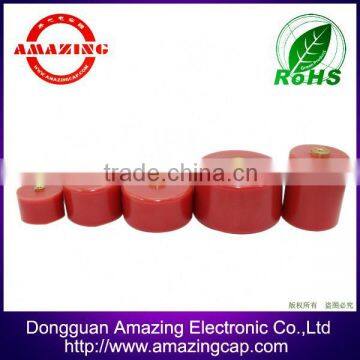

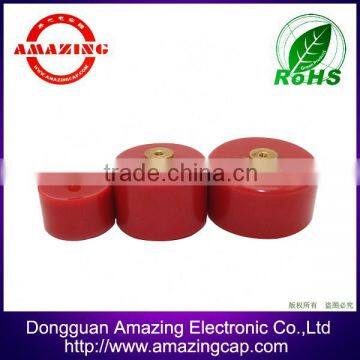

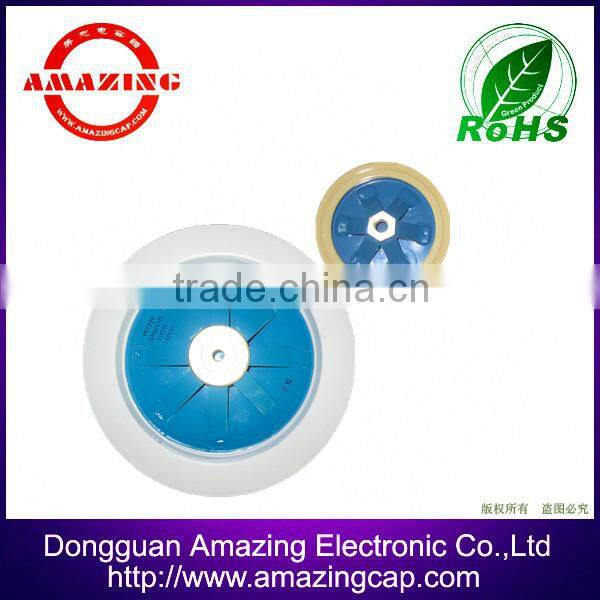

High Voltage Class 1 Ceramic Capacitor 20kV 500pF, Doorknob, Screw Terminal Mounting
![]() | Features

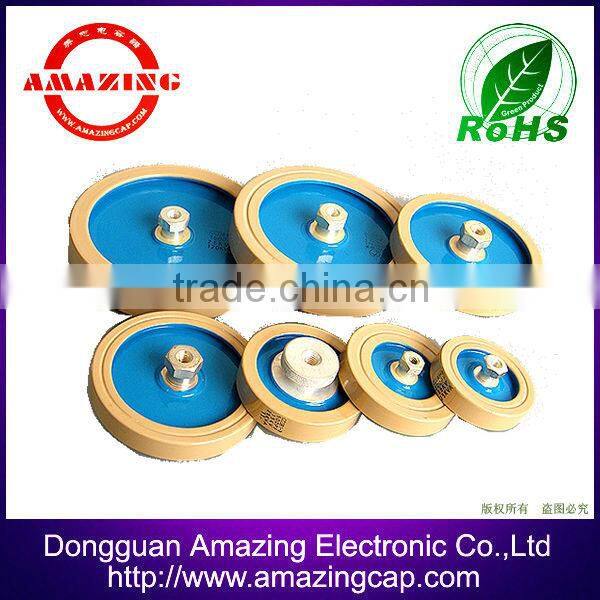

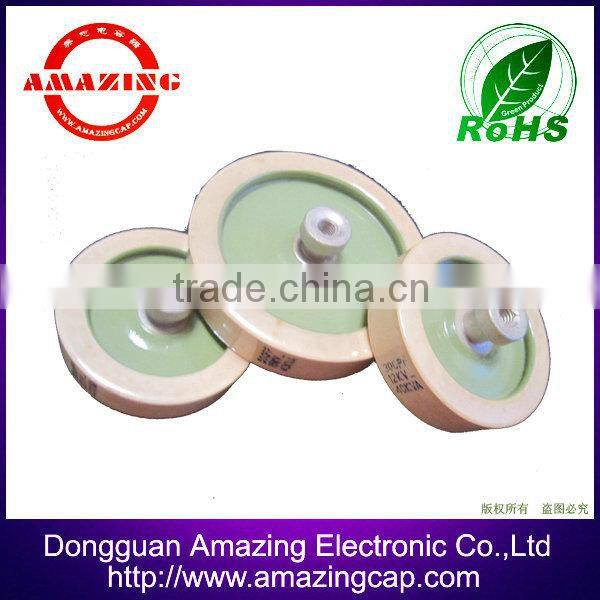

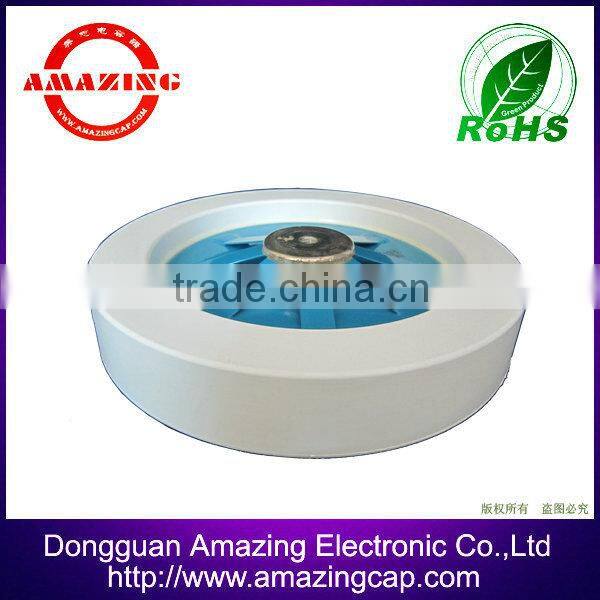

Applications These high quality power plate capacitors are designed for usage in high frequency heating, welding equipment,and working environmentwith effects of moisture, dust and other impurities where high voltage rating are required. |

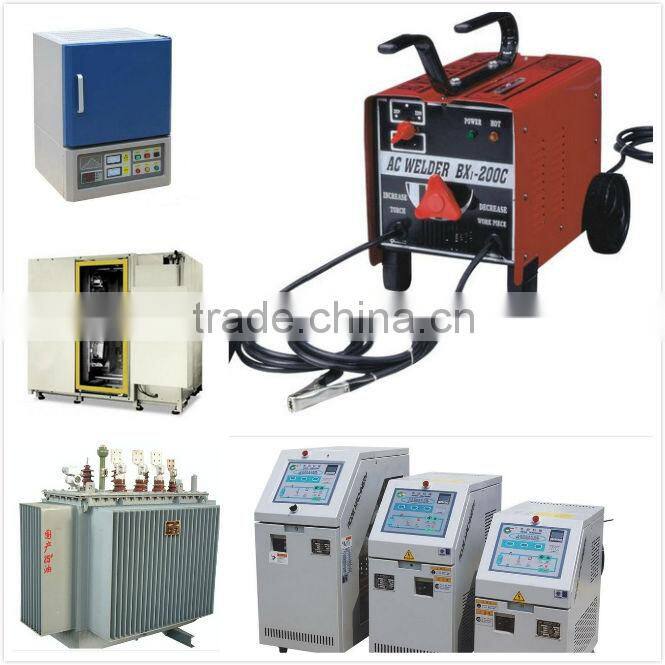

We will be used in these equipment:
Quick Reference Date

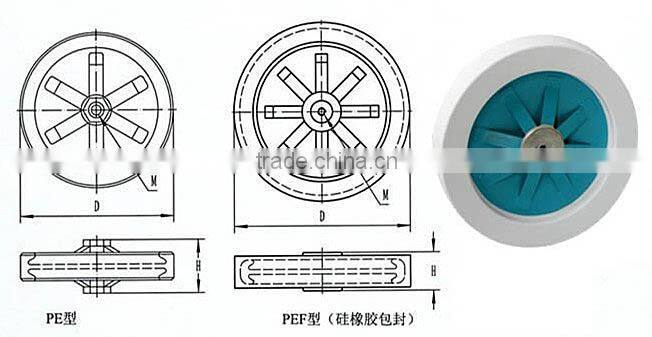

Number | Mdle | Nominal Capactance(PF±20%) | Rated Voltage(KVDC) | Reactive Power (KVA) | Max. Currency (A) | Dimension(mm) | ||
| D | M | H | ||||||
| 1 | PE100 | 500 | 14 | 40 | 35 | 100 | 8 | 45 |
| 2 | PE100 | 600 | 14 | 40 | 35 | 100 | 8 | 43 |
| 3 | PE110 | 1000 | 13 | 40 | 35 | 110 | 8 | 42 |
| 4 | PE110 | 1500 | 9 | 40 | 35 | 110 | 8 | 40 |
| 5 | PE110 | 2000 | 7 | 40 | 35 | 110 | 8 | 40 |
| 6 | PE140 | 500 | 30 | 90 | 35 | 140 | 8 | 48 |
| 7 | PE140 | 1000 | 20 | 90 | 45 | 140 | 8 | 46 |
| 8 | PE140 | 1500 | 15 | 90 | 45 | 140 | 8 | 44 |
| 9 | PE140 | 2000 | 13 | 90 | 45 | 140 | 8 | 41 |
| 10 | PE140 | 2200 | 13 | 90 | 45 | 150 | 8 | 42 |
| 11 | PE140 | 2500 | 13 | 90 | 45 | 150 | 8 | 40 |
| 12 | PE140 | 3000 | 12 | 90 | 45 | 150 | 8 | 40 |
| 13 | PE200 | 1000 | 30 | 150 | 60 | 200 | 10 | 55 |
| 14 | PE200 | 1500 | 30 | 150 | 60 | 200 | 10 | 50 |
| 15 | PE200 | 2000 | 20 | 150 | 60 | 200 | 10 | 48 |
| 16 | PE200 | 3000 | 14 | 150 | 60 | 200 | 10 | 40 |
| 17 | PE200 | 5000 | 13 | 150 | 60 | 200 | 10 | 33 |
| 18 | PE210 | 2500 | 20 | 150 | 60 | 210 | 10 | 46 |
| 19 | PE210 | 6000 | 12 | 150 | 60 | 210 | 10 | 32 |
| 20 | PEF220 | 2500 | 20 | 150 | 225 | 10 | 45 | |
Remark: If you have any other requirements on the specification of the capacitors, we are able to supply different
models according to your requirements.
Dielectric of High Power High Voltage Ceramic Capacitor :
the materials of the high voltage disc ceramic capacitors so that you can find the favorite capacitor.
Material Type | Insulation Resistance≥ΜΩ | Dissipation Factor≤(%) | Temperature Characteristics | Operating Temperature |
| N4700(DL) | 200000 | 0.2 | +22% -33% | -30°c +85 °c |
| Y5S(D) | 100000 | 1.0 | +10% -22% | -30°c +85 °c |
| Y5T(D) | 100000 | 1.0 | +22% -33% | -30°c +85 °c |
| Y7R(B) | 100000 | 1.5 | ±10% | -30°c +125 °c |
| Y5U(E) | 10000 | 1.5 | +22% -56% | -30°c +85 °c |
| Y5V(F) | 10000 | 1.5 | +22% -80% | -30°c +85 °c |

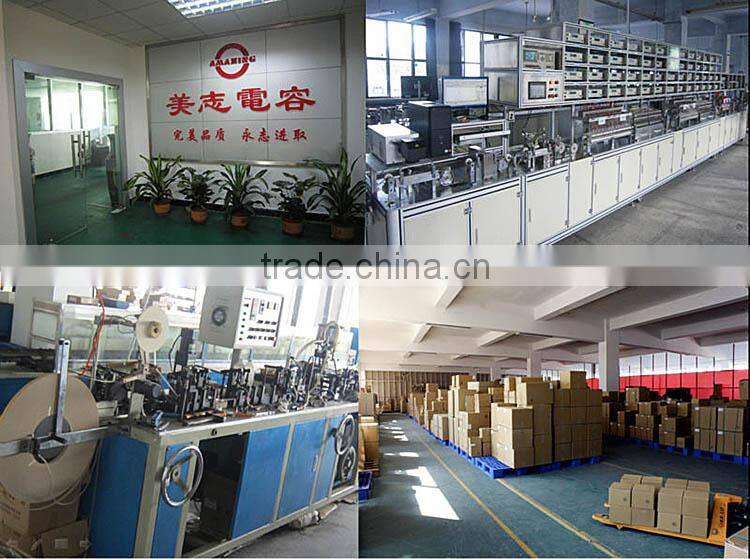

Dongguan Amazing Electronic Co., LTD is a professional domestic import and export type enterprise in China, engaged in capacitors. Amazing Company has been committed to the research and development of high quality aluminum electrolytic capacitors and high voltage ceramic capacitors and alternating current safety capacitors. Our products are sold to global dozens of countries and regions.After continuous efforts, it has become a Small and medium enterprise with three subsidiaries,Aamzing Capacitor Company,ChangTai Capacitor Company and Amazing Technology(HK) Company. Amazing gives priority to midium-end and high-end electrolytic capacitors ,mainly has the aluminum electrolytic capacitor series .They are high frequency low resistance (Low ESR) capacitor, low leakage current capacitor,medium and high voltage capacitor,high frequency long life capacitor,high stability capacitor. All the products are widely used in UPS, LED drive power, electric vehicle controller, mobile phone charger, mechanical equipment, instrument and meters, color TV, DVD, STB, inverter power supply and other products. Our high voltage ceramic capacitors are made up of military materials and have the following characteristics: super high voltage and super high frequency, low partial discharging(PC),small insulation resistance. Our high voltage ceramic capacitor are applicable to aviation spacecraft, intelligent power grid,step-up and voltage-multiplying circuit, and digital circuit as measuring boxes, police equipment, X-ray machine, CT machine and so on medical equipment, security detecting equipment, electric power equipment, instruments and meters, mechanical equipment, anion generator, high voltage generator,etc.. The rated voltage of ours ranges from 1 KV to 60 KV and capacitance ranges from 10PF to 30000PF. Our ceramic capacitors are with high quality and at reasonable price. The estimated service life time is as long as 10 years. |
1.Good reputation among the peers, supplier's strong support
2.Over 10000 suppliers around the world
3.Record and accelerate the entire procedure from initiative negotiationto the conclusion of the deal
4.Have more than 20 of the international language service center, distribution in the United States,
Asia and Europe
5.All sorts of demand rapid response, and provide solutions
6.Use CRM system accurate order execution
7.95% on time delivery rate and fast delivery confirmation
8.Provide 24 hours the real inventory quantity inquires
1.Are you a trading company or manufacturer?
A:Manufacturer with factory
2.What kinds of items do you produce?
A: All kind of Capacitors.
3.Do you Accept OEM service?
A:YES!
4.What's your Delivery Time?
A:Generally the goods will be sent immediately by the air express in 3-5 days if the goods are in stock.
Normally within 30 days,please confirm with us before order!
5.What's the Payment Terms?
A:Usually,30% as deposit,70% before shipment by T/T or western union,Western Union acceptable for small amount.
L/C acceptable for large amount.Escrow ,Paybal,Alipay are also ok
6. How can I identify if SMD aluminum capacitor is good or bad?
A: Capacitors voltage range, Dissipation factor(DF), Leakage current, ESR and ESL, the smaller the better.
7. Are your capacitors as good as catalogue shows?
A:Absolutely! From materials such as aluminum foil, electrolyte, guiding needle to test equipments for example
full-automatic aging machine are the choice.
8. How long is the warranty?What are the replacement conditions?
A:Warranty is half a year since you pay and we only replace the aluminum electrolytic capacitors when products
are not meet the acceptance criteria.

Free samples are available if necessary for evaluation...
