Home > Products > Swamp Excavator > SX150SD Hydraulic Crawler Excavator With Extendable Chasis

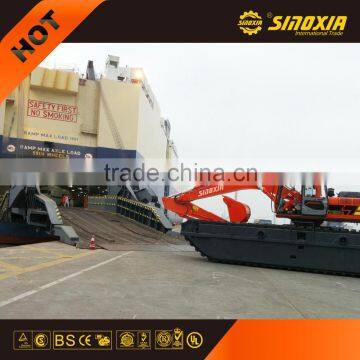

SX150SD Hydraulic Crawler Excavator With Extendable Chasis
US$ 100,000 - 200,000
/ Set
1 Set(Min. Order)
- shanghai
- T/T Credit Card PayPal
You May Like
-
SX150SD Hydraulic Excavator Swamp Buggy With Pontoon
-
Sand Dredging Machine Pontoon Excavator SX300SD for Sale
-
Premium Supplier China Buggy for Two Use SX400SD
-
High Quality Swamp Excavator SX300SD Buggy
-
China Amphibious Excavator for Two Use SX400SD
-
Hydraulic Pontoon Excavator SX300SD Land And Water Excavator
Product Details
| Place of Origin | Anhui, China | Brand Name | SINOXIA | |
| Model Number | SX150SD | Condition | New | |
| Moving Type | Other, pontoon | Operating Weight | 15000kg | |
| Bucket capacity | 0.25m3 | Maximum Digging Height | 8443mm | |
| Maximum Digging Depth | 5879mm | Machine Weight | 15000kg | |
| Max Digging Radius | 8772mm | Rated Speed | 30km/h | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product introduction :
High efficiency ,low fuel consumption ,low noise ,comfortable operation ,stable performance ,low ground pressure .
Tracked pontoon structure ensures low ground pressure so that it can travel and work on swamp and soft areas ,it can also be towed to move forward on water .
Big torque travelling devices ensure strong driving force when turning and climbing.
Big circular arc structure on both ends of pontoon reduces travelling resistance
High capacity of fuel tank greatly increases time interval of fueling
Pontoons with extenable classis make it easy to be transported
Powerful engine owns high efficiency, low fuel consumption and high reliability .
Humanized design of cab with air conditioning has great all round visibility and confortable operation environment.
| Type of the machine | HK150SD hydraulic crawler excavator with extendable chasis | |
| Operating weight | 15000KG | |
| Standard bucket capacity | 0.25m³ | |
| Boom length | 4500mm | |
| Arm length | 3000mm | |
| Chains | 2 | |
| Engine model | Yammar 4TNV98T | |
| Type | inter-cooled turbo | |
| Power | 56.5kW/2200rpm | |
| Max.torque | 301N m / 1650rpm | |
| No.of cylindar | 4 | |
| Displacement | 3.319L | |
| Type | Variable plunger pump | |
| Max.displacement | 90cm3/r | |
| Working pressure | 26.5Mpa | |
| Slew motor | fixed plunger | |
| Travel motor | variable plunger | |
| Slew speed | 12rpm | |
| Min.slew radius | 2257mm | |
| Max.travel speed high/low | 3.79/2.33km/h | |
| Gradeability | 35° | |
| Tracktive effort | 112.2kN | |
| Max.digging force of bucket | 49kN | |
| Max.digging force of arm | 43.4kN | |
| Ground pressure | 0.13kg/cm2 | |
| Fuel tank capacity | 300L | |
| Hydraulic tank capacity | 210L | |
| Item | Standard(mm) | |
| Length of pontoon | 6640 | |
| Ground clearance of platform | 1474 | |
| Overall height | 3294 | |
| Boom transport height | 3294 | |
| Overall length | 9009 | |
| Rear swing radius | 2130 | |
| Track gauge | 2050-3100 | |
| Overall width | 3500-4548 | |
| Width of pontoon | 1298 | |
| Min.ground clearance | 717 | |
| Height of pontoon | 1420 | |
| Width of upper structure | 2207 | |
| Item | Standard(mm) | |
| Max.digging reach | 8996 | |
| Max.digging reach on ground | 8772 | |
| Max.digging depth | 5879 | |
| Max.vertical digging depth | 4796 | |
| Max.digging height | 8443 | |
| Max.dumping height | 6457 | |
| Min.front slewing radius | 3524 | |
