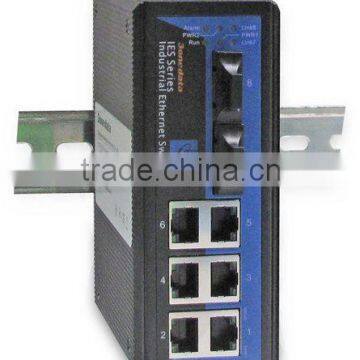

8-port 10/100M Unmanaged Industrial Ethernet Switch(IES308-2)

Specifications

IES308-2

8-port 10/100M Fast Ethernet Switch

Features

1. Advanced Ethernet switch technical

2. IEEE802.3/802.3u/802.3x/802.3d,store and forward

3. Plug-and-play, 10/100M, F/H duplex, MDI/MDI-X auto negotiation

4. Broadcast storm protection

5. Relay output warning for power failure and port break alarm

6. Redundant 24VDC power input(12V~48VDC)

7. -40~75°C working temperature

8. Designed for industrial applications. IP30 protection, rugged

high-strength metal case

Introduction

IES308-2 series are a smart plug-and-play Fast Ethernet switch, which can provide economical solution for your Ethernet. Its dustproof fully sealed structure(pr protective case of IP30 level), over-current, over-voltage and EMC protected redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.

IES308-2 series fast ethernet switch supports 6 TP ports and 2 fiber ports. TP(RJ45) Support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection.100BaseFX ports supports single/multi mode, SC/ST connector, optional.

Specification

Interface

RJ45 Ports: 10/100BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection

Alarm output interface:One relay alarm output. Support power, port link and network alarm

Indicator: Power, Port link, abnormity alarm indication, 10M/100M Rate

Technology

Standards: IEEE802.3, IEEE802.3x, IEEE802.3u

Forwarding and Filtrate Rate:  148810pps

Processing type: Store and Forward

System exchange bandwidth: 4.8G

Relay

Max voltage: DC30V

Max power input: 24VA

Power

Input Voltage: 24VDC (12VDC~48VDC)

Overload Current Protection

Support dual power backup

Mechanical

Dimensions: 136mm×52mm×105mm (H×W×D)

Casing: IP30 protection, Metal case

Weight: 800g

Environmental

Operating Temperature: -40 to 75°C

Storage Temperature: -45 to 85 °C

Ambient Relative Humidity:10% to 95% (non-condensing)

Approvals

EMI:FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5 (Surge),

EN61000-4-6 (CS),

EN61000-4-8,

EN61000-4-11

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty: 5 years
