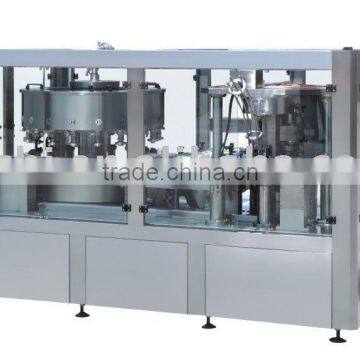

Automatic Seaming Machine
- NINGBO
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Cans | Packaging Material | Metal | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380 | Power | 5.5kw | |
| Place of Origin | Zhejiang, China | Brand Name | weichi | |
| Model Number | GT7B20Q-FGJ250 | Dimension(L*W*H) | 3400*1950*1900 | |
| Weight | 4000 |
Product Description
Specifications
4 capping heads20 filling heads
For beer and other CSD
Capacity:30-150cans/min
This machine is suitable for filling and capping of beer,cola,soda and so on. It adopts isobaric pressure filling principle. The main electric elements adopt “Mitsubishi” PLC, frequency converter and proximity switch.
Set up the production speed on touch screen. Machine alarm automatically of all common malfunctions and show the cause and position of malfunction, PLC detect and decide to continue or stop the machine according the level of malfunction.
Specifications: | |
| |
The number of capping head | 4 |
The number of filling head | 20 |
Production capacity | 30~150 cans/min |
Can Height | 122~160mm |
Can Diameter | Φ65mm |
Power | 5.5kw |
Weight | 4000kgs |
Dimension | 3400×1950×1900mm |
The production capacity is relate with the carbonate content.
Other advantages:
1. Equip with remote computer control system;
2. Adopts import frequency converter, adjust filling and seaming speed at will;
3. Equip with steam jet device according the customer requirement;
4. Filling quantity even and easy for adjustment;
5. Special filling valve is easy for clean.
