automatic beer can carbonated drink filling machine

Specifications

  beer can carbonated drink filling machine

Type: Filling Machine

Condition: New

Application: Beverage

Packaging Type: Cans

Packaging Material: Metal

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380

Power: 5.5kw

Place of Origin: Zhejiang, China (Mainland)

Brand Name: weichi

Model Number: GT7B20Q-FGJ250

Dimension(L*W*H): 3400*1950*1900

Weight: 4000

stainless steel: monobloc

Processing Types: Carbonated Beverage

Processing: filling line

Packaging & Delivery

Packaging Details:WOODEN CASE

Delivery Detail:

45 days after down payment

.

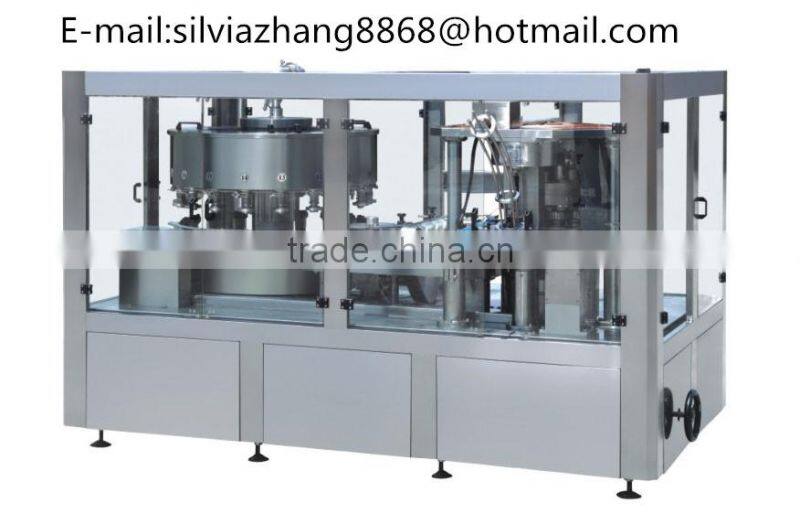

  This machine is suitable for filling and capping of beer,cola,soda and so on. It adopts isobaric pressure   filling principle. The main electric elements adopt “Mitsubishi” PLC, frequency converter and proximity switch.

     Set up the production speed on touch screen. Machine alarm automatically of all common malfunctions and show the cause and position of malfunction, PLC detect and decide to continue or stop the machine according the level of malfunction.

Specifications:

The number of capping head 4

The number of filling head :20

Production capacity:30~150 cans/min

 Can Height:122~160mm

 Can Diameter:Φ65mm

Power:5.5kw

 Weight:4000kgs

 Dimension:3400×1950×1900mm

 The production capacity is relate with the carbonate content.

 advantages:

1. Equip with remote computer control system;

2. Adopts import frequency converter, adjust filling and seaming speed at will;

3. Equip with steam jet device according the customer requirement;

4. Filling quantity even and easy for adjustment;

5. Special filling valve is easy for clean.
