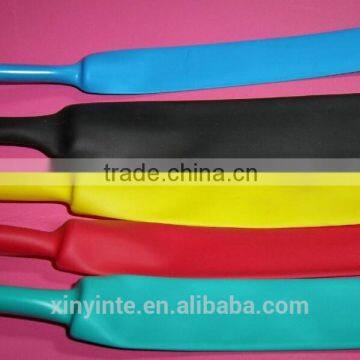

Heat shrinkable tube
- 1000000 Meter / Meters per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Rated Voltage | 0.3-0.6(KV) |
Product Description
Specifications
Heat shrinkable tubePolyolefin Heat Shrinkable Tube
1.LOGO printing
2.I.D.:0.6mm~250mm
3.Flexible shrink tubing
4.Shrink ratio:2:1,3:1
Heat shrinkable tube
The product is characterized by a halogen-free,environmentally friendly,soft,insulated,low shrinkage.
Warranty: UL & ROHS & SGS
Polyolefin heat shrinkable tube Main Properties:
1.Operating Temperature:-55~ 125 °c;
2.Shrinking Temperature:Start at 70 °c,and full recovery at 125 °c ,longitudinal shrink ratio:≤ 5%;
3.Flexible,flame retardant;
4.The Available sizes from 0.6mm~250mm ,Can product upon customer's special requirement;
5.Easy for use,using oven or heating gun and it will shrink;
6.Meet RoHS standard.
7.Standard colors: Black,White,Red,Yellow,Green,Purple,Blue,Grey,Brown
(Other color available upon request.)
| Polyolefin heat shrinkable tube Technical Data: | |||
| Properties | Test Method | Standard | |
| Physical | Tensile Strength(MPa) | GB/T1040 | ≥10.4 |
| Elongation(%) | GB/T1040 | ≥200 | |
| Tensile Strength after Aging(MPa) | UL 224 158°C×168hr | ≥7.3 | |
| Elongation after Aging(%) | UL 224 158°C×168hr | ≥100 | |
| Heat Resisitance | UL 224 250°C×4hr | No viscidity, No cracking | |
| Electrical | Cold Blend | UL 224 -30°C×4hr | No cracking |
| Dielectric Strength(kv/mm) | GB/T1408 | ≥15 | |
| Dielectrc Withstand | |||
| 150V | UL 224 | No breakdown for 1500V | |
| 600V | UL 224 | No breakdown for 2500V | |
| Volume resistance(Ω.cm) | GB/T1410 | ≥1×1014 | |
| Chemical | Anti Corrosion | UL 224 158°C×168hr | PASS |
| Conpper stability | UL 224 158°C×168hr | PASS | |
| Flammability | UL 224 | VW-1 | |
