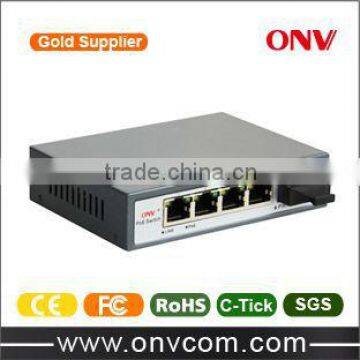

5-Port PoE Switch with 4 High Power PoE Ports and 1 SC Fiber Port for IP camera.IEEE802.3at.

  This POE31004PF-at switch provides a network point for power supply and data transmission. All the 5 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is Ethernet interface, among which 1-4 ports can provide standard IEEE 802.3at power supply. Due the advanced self-sensing algorithm supply power for IEEE802at terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected. In short, The POE31004PF-at features simple and reliable design, automatic identification PoE requirements, duplex and high-speed.

  This cost-effective POE31004PF-at provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

Detail

1.Can supply power to network surveillance cameras that without PoE function
2.5x 10/100Mbps auto-sensing RJ45 ports, 4x 10/100Mbps PoE ports, 1x 155Mbps SC port
3.Supports port auto-flip (Auto MDI/ MDIX)
4.External power supply
5.Maximum PoE ports power: 120W (Port 1 to Port4)
6.Maximum power of single PoE port: 25.5W
7.Adopts store-and-forward architecture
8.IEEE 802.3at power on up to 4 ports
9.Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall
10.Built-in 1U rack power supply series, easy to place it into standard mounting brackets

Technical Specification

Product Size Display

Product Usage Display

Installation Step

Product Ordering Information

Product Model: POE31004PF-at

Product Description: 5x 10/100M Ethernet ports with 4x PoE ports and 1x SC fiber port, and 1-4 ports supports IEEE802.3at POE international standard, each port power is15.4W, total power is 120W

Ordering Notes: PoE default power supply is end-span (1/2, 3/6 line pair), alternative PoE

Power supply is mid-span (4/5, 7/8 line pair)

Product Packing Lists

Certification

Delivery Detail
