MTCPP OIL PIPELINE ALL POSITION AUTOMATIC WELDING MACHINEMACHINE
Negotiable
/ Set
1 Set(Min. Order)
- SHANGHAI
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | MANTOCA | Model Number | MTCPP |
Product Description
Specifications
And applicabled to oil pipeline,Petrol-chemical industry, storage construction, steel structure, etcMANTOCA MTCPP PIPING ALL POSITION AUTOMATIC WELDING MACHINE

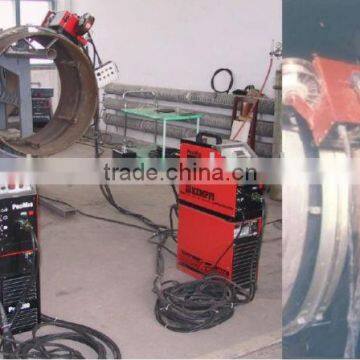

| 1,MTCPP Type piping All Position Automatic Welding Machine is specialism for large and intermediate Dia of pipeline of circular seam welding, design and manufacturing for all position automatic welding. 2,This welding machine is suitable for the large and intermediate Dia of pipe of circular seam welding’ shoting welding,filling welding and cap welding ring welded joint's thermit welding, the packing welds with the screen welds (root welding to use the STT semiautomatic welding to complete). 3,The welding machine is composed of the following four parts: Welding head (including trolly travel system welding torch swinging system, welding torch to raise system, welding torch feeding system, welding control box) ,welding track, controlling system, welding source. |
| |||
| Applicable pipe diameter:φ325-1420 mm | |||
| Applicable pipe wall THK: 6-80mm | |||
| Input voltage: 240W, 220V, 50Hz | |||
| Dia of welding wire:φ0.9-1.2mm | |||
| Travel speed: 0.08-1.63m/min | |||
| Swing scope: 0-3.0cm | |||
| Swing speed:0-42mm/S | |||
| Amplitude of fluctuation: 0-30mm | |||
| Max Alignment(Offset): 70mm | |||
| Remaining Time: 0-2S | |||
| Welding wave shape: Triangular wave, Trapezoid wave, Rectangular wave,and beeline etc. | |||
| Loading welding wire: 5 Kgs | |||
| Weight of welding head: 13Kgs | |||
| Performance Features | |
| 1,MTCPP Type Piping All position Automatic Welding Machine uses adopt as DC the pulse width velocity modulation as the foundation, the displacement sensing examination closed-loop control for the core hardware circuit, in the piping all position automatic welding process, the welding parameters can preset, also distinguish real time to adjust. This characteristic causes it is suitable for to long distance pipeline fitting up the complex situation in the job site. 2,Owing to the tubing, especially our country widespread use spiral welded pipe Dia difference is too large, the dia of pipe ellipticity, groove bevels processing's anomalous, lead to when fitting up at job site, sometimes will happen the bevel width and narrow vary, the misalignment and soon, will be unable with the regular bevel hypothesis's parameter to weld completes the fine weld bead, in this case the welder must through the observation molten tool, the real-time adjustment parameter, especially the amplitude of vibration and the both sides resident time, can obtain the fine weld bead. | |
| 3,The control circuit wafer and the complete machine carry on the load aging to examine and to vibrate the examination, guarantees equipment's redundant reliability truly. 4,Considered electricity generation frequency unsteady and the transient state responded the slow butt weld quality the influence in the field job site, has used the broadband characteristic inversion power source. Simultaneously had considered the bad construction conditions in the field job site, equipment load continuing leads the high special request, the essential component, such as electrical motor, bearing, the sensor and the chip select the Specialized company famous brand the import parts 5,One kind of pipeline diameter applies one kind of specially made welding track, the standard config only with one specification welding track (to be possible optional) |
