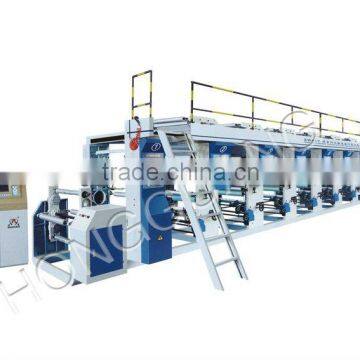

Automatic Rotogravure Printing Machine
USD $11,111 - $111,111
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | RUIHAO | Model Number | SWASY-800 | |
| Usage | Paper Printer, Tube Printer, Other, Paper Printer, Tube Printer, BOPP,PET,PE,aluminium foil , paper,etc. | Automatic Grade | Automatic | |
| Voltage | 220V/380V/440V | Gross Power | 65kw | |
| Dimensions(L*W*H) | 12400*2500*2350mm | Weight | 5T | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Automatic Rotogravure Printing Machine2.Materail: BOPP,PET,PE,aluminium foil , paper,etc.
3.100-2000mm printing width, CE
Automatic Rotogravure Printing Machine
Use:
This machine is suitable for multi-color through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminium and paper, ect.
Characteristic:
1. Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.
2. The main machine adopts frequency control of motor speed.
3. Releasing tension adopts frequency control of motor speed.
4. Rolling adopts full ¨Cautomatic constant tension and traction coordinated with torque DC motor, double-station automatic turnover, replacing the material without stopping the machine.
5. Two-layer airproof structure for drying oven provides uniform wind flow, while specific cooling fin of stainless steel for heating tube provides energy-saving opportunity, uniform temperature as well as anti fire possibility.
6. Pneumatic ink circulation system is provided
8. Air shaft is used for unwinding and rewinding shaft providing convenient assemble and unassembled possibilities.
9. It is provided with display of press line speed and accumulated length in meter.
10. Quality cast-iron structure for the whole set provides good stability and vibration absorbing capability.
Main technical:
Model | SWASY-800 |
Effective Printing Width | 800mm |
Max Width of Base Material | 850mm |
Max. Printing Speed | 90-110m/min |
Max Machinery Speed | 150m/min |
Max Diameter of Rolling and Releasing | 600mm |
Inside Diameter of Rd core of base material | 76mm |
Diameter of Printing plate Roller | 120-300mm |
Modified Accuracy of Computer REGISTRATION | +/-0.2MM |
Control Range of Tension | 0-25kg/full width |
Heating Power of Oven | 50kw |
Total Power of machine | 65kw |
Weight of machine | 5000kg |
Outline Diameter(L*W*H) | 12400*2500*2350mm |
