Home > Products > Cycloidal reducer > Cycloidal Reducer / High efficiency
Cycloidal Reducer / High efficiency
- NINGBO OR SHANGHAI
- T/T
You May Like
Product Details
| Gearing Arrangement | Cycloidal | Output Torque | up to 100000NM | |
| Rated Power | 0.37-15kw | Input Speed | 1400 or other | |
| Output Speed | 0~1000 rpm | Place of Origin | Zhejiang, China | |
| Model Number | X.B.JXJ | Brand Name | wuma or other |
Product Description

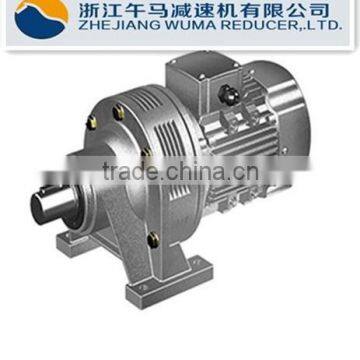

Cycloidal Reducer / High efficiency
 | | |
| WAH SERIES | Combination of RV Series | RV Series |
1) Large ratio
2) High efficiency
3) Impact size
4) Less problem, long working life
5) Stable reliable turning
6) Easy disassembly, maintenance
7) High overloading, attacking and less inertia torque, the unit can be used
in case of frequency starting and reversing.
8) Specification:
a) Single-stage: 1-11 eleven type totally (X series); 0~8 nine type totally
(B series)
b) Two-stage: 42~117 ten type totally
9) Input power: 0.12~55kW
10) Output torque: 70-20,000Nm
11) Transmission ratio:
a) Single-stage: 9-87 fourteen sorts totally
b) Two-stage: 121-5,133 seventeen sorts totally
12) By economy direct connection and shaft input form, by lying mode and
standing mode mounting form
WB series of micro cycloid micro reducer:
1) Specification:
a) Single-stage: 65-150 five type totally
b) Two-stage: 1,065-1,510 three type (two-stage)
2) Input power: 0.04-3kW
3) Output torque: 2.7-7569Nm
4) Transmission ratio:
a) Single-stage: 9-87 ten type totally
b) Two-stage: 121-1,849 ten type totally
| Type | X2 | X3 | X4 | X5 | X6 | X7 | X8 | X9 | X10 | X11 |
| LIMITED TORQUE DATA N.m | 150 | 250 | 500 | 1000 | 2000 | 2700 | 4500 | 7100 | 12000 | 20000 |
1 Q:What infomation should I tell you to confirm the product?
A: Model/Size, Transmission Ratio, Shaft directions & Order quantity.
2 Q: What if I don't know which one I need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.
4 Q:What is your product warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
5 Q:What industries are your gearboxes being used?
A:Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry, escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
