M3116F10-6S Straight Plug Connector
- shanghai
- PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | hangjie | |
| Model Number | M3116F10-6S | Type | DIN | |
| Application | Other, Aviation | Gender | Other, Both |
Product Description

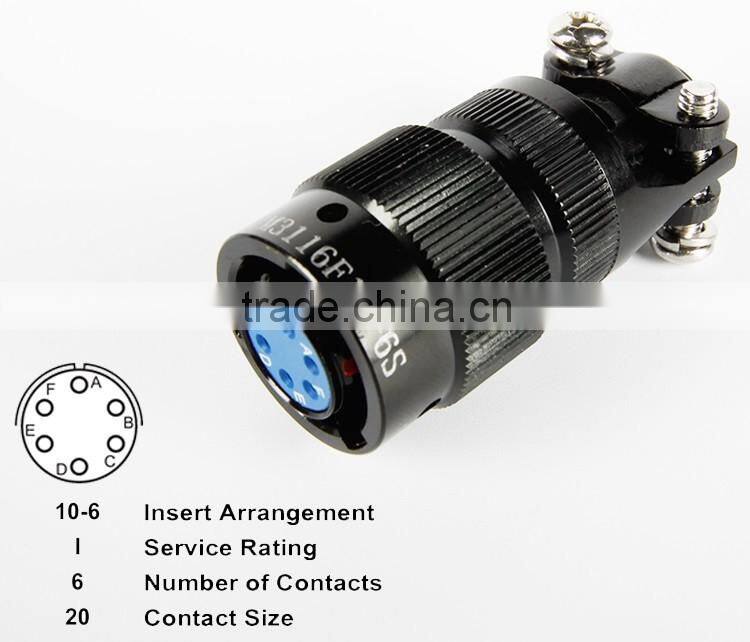

M3116F10-6S Straight Plug Connector
Conform to GJB598A-96 standard. With reference to the American MIL-C-26482 standards. They are equailvant to JY series, YB series and MS series, MS series. They can cooperate in use with the receptacles which have the same type. This series connectors are quick coupled by bayonets. Their contacts are soldered.

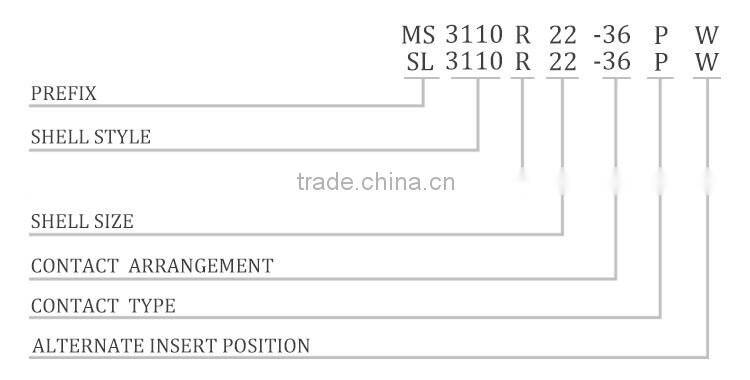

HOW TO ORDER
| SERIES PREFIX | MS-MIL-C-26482 prefix |
| SHELL STYLE(cont`d) | MS Designation 3110-wall mounting receptacle 3111-cable connecting plug 3112-box mounting receptacle 3114-jam nut receptacle 3116-straight plug 3119-thru-bulkhead receptacle |
| CLASS | A-general duty(not MS approved) (may be used for potting when strain relief is desired)(not MS approved) |
| SHELL SIZE | 8,10,12,14,16,48,20,22,and 24 |
| CONTACT STYLE | P-pin S-socket |
| ALTERNATE INSERT POSITION | W,X,Y and Z.(omit for Normal.) |

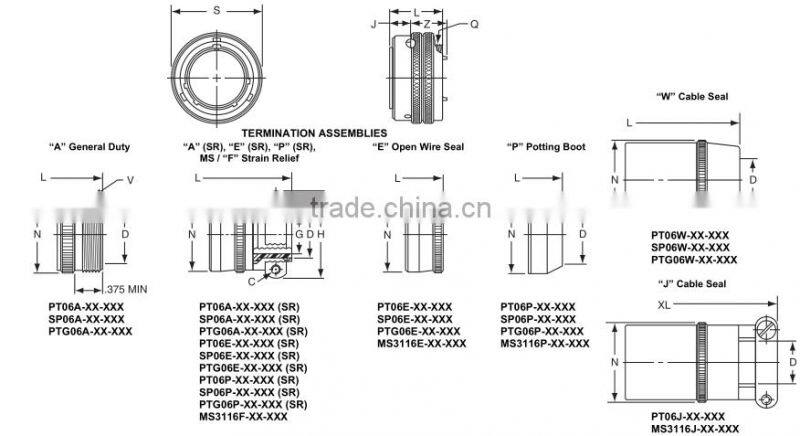

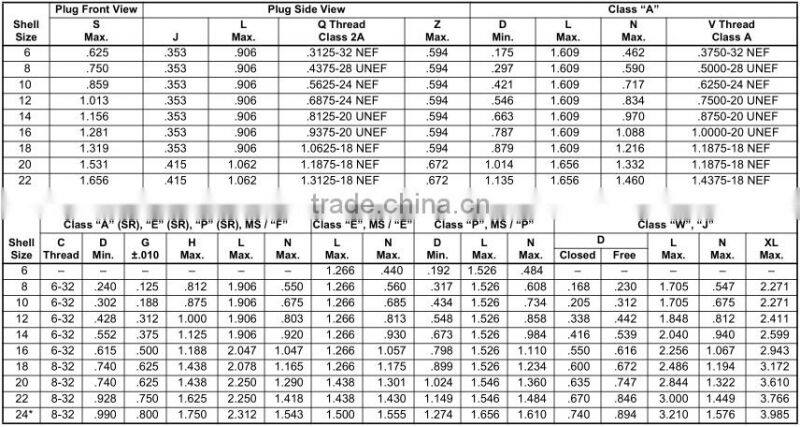

If you want to customize the other sizes, pls check below.
Conditions of use environment
| Relative temperature | -55 ° C ~ +125° C |
| Relative Humidity | When 40 ± 2 ° C, up to90% ~ 95% |
| Operating Pressure | 101 ~ 0.8kpa |
| Sin Vibration | 101 ~ 2000HZ, acceleration 196m/s2 |
| Collision | Acceleration 392m/s2 |
| Impact | Acceleration 980.7m/s2 |
| Insulation resistance | Under normal atmospheric conditions not less than 3000M Ω Under the conditions of high temperature of not less than three M Ω |
| Resistance Temperature | 1500V exchange |
| Airtightness | General socket is not more than 6 × 10-2Pal / s Socket sintered glass not more than 1 × 10-5Pal / s |
| Life expectancy | Plug 500 |
| Implementing standards | Q/321283LSB04-2006 "Y50 series of circular connector |
