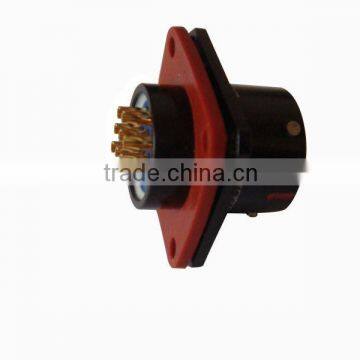

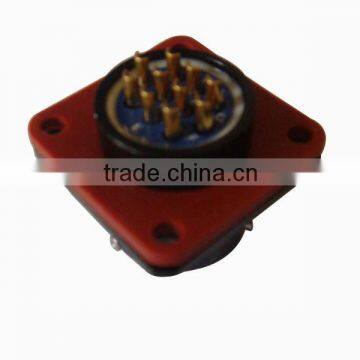

MS3112E12-10P Amphonel Military Connector

1. According to the structure of   MIL-C-26482 series I

2. quick bayonet coupling

3. solder connection

4. small volume, high contact density, withstanding environment

5. widely used in military system and commercial fields

Ambient Temperature Range

-55 ~ +125

Frequency

102000 Hz147 m/s²

Shock

490 m/s²

Salty spray

500 hours(L class); 48 hours(A class)

Durability

500 times

relative humidity

95±4% at 40

insulation resistance

e5000M© at 25

e3M© at  125

      MS     3110  E   14   32    P    N    L

      1         2    3    4   5      6    7    8

1: MSSeries Prefix

2: type:3110-wall mounting receptacle

3111-cable connecting receptacle

3112-box mounting receptacle

3114- jam nut receptacle

3116- straight plug

       3: Service class:E-interfacial seal and electric shell

                   F- interfacial seal,electric shell and clamp assembly for cable

P-potting seal and clamp assembly for cable

J- potting seal for cable and clamp assembly for cable

B-for PCB

R-without trail assembly

4: Shell size :08-10-12-14-16-18-20-22-24

5: Insert arrangement: Please see the figure of insert arrangement

6: Contact :P-pin contact ,S-socket contact

7: Key: N- normal keyWXYZ- alternative key

8: shell plating: blank- olive brown cadmium plate

L-electroless nickel plating

A-anodic black coating

S- stainless steel passivation

B-olive green cadmium plate
