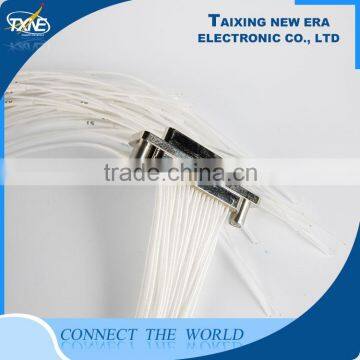

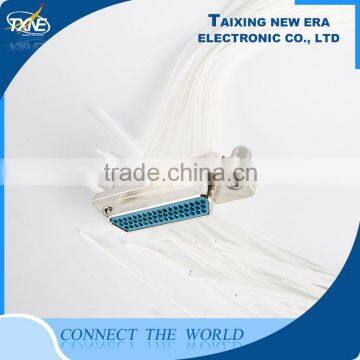

J30J Series 51 Pins Rectangular Connectors
- Shanghai
- PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | hangjie | |
| Model Number | J30J-51TJL | Type | DIN | |
| Application | Power | Gender | Male |
Product Description

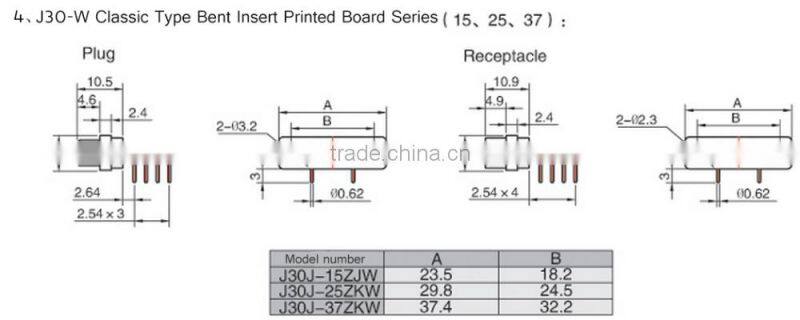

J30J MICRO RECTANGULAR CONNECTOR
The contact spacing of these connectors with wire twisting pin and high density contacts arrangment are 1.27*2.54mm,1.6*2.54mm and 2.54*2.54mm.There are plastic shell and metal shell. They are equvialent to the MD series and MDM series of USA and have the features of small volume ,quickly mating and unmating function. They are wildely used for the electric circuit connection of military electronic equipment,espically in the area of small install space and light weight.
Conditions of use environment
Relative temperature: -55 ° C ~ +125° C
Relative Humidity: At +40°C, 95%
Technical Features ( Under Normal Condition )
| Rated Current | 3 A |
| Contact Resistance | Less than 10MΩ |
| Insulation Resistance | Morn than 5000 MΩ |
| Dielectric Withstand Voltage | 600V |
How to order
