Heavy Current/magnetic Latching Type Contactor/bus Bar Type
Negotiable
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DY | |
| Model Number | ZLJM-500C/60V.S | Electricity Type | DC | |
| Number of Pole | 1 | Main Circuit Rating Voltage | Other, 48VDC | |
| Main Circuit Rating Current | Other, 500A |
Product Description
Specifications
1.magnetic latching contactor dc contactor2.500A contact swithing capability
3.passed the UL test
4.easy to heat dissipation
1.Application
For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc.
2.Basic technical data
| NO. | Parameters | ZLJM-500C/60V.S |
| 1 | Rated coil volt(VDC) | 60 |
| 2 | Operating volt in cold state at (20 ±5) °C | (25%~70%)of rated coil volt |
| 3 | Rated load current of contact circuit(A) | 500 |
| 4 | Rated volt of contact circuit(VDC) | 60 |
| 5 | Contact volt drop of rated load | not above 80mV |
| 6 | Min pulse width | 200mS |
| 7 | Dielectric strength (between insulated electric parts) | 1000VAC 50/60Hz(1 min) |
| 8 | Electric life | 20000 Ops |
| 9 | Mechanical life | 100000 |
| 10 | Coil current | <700mA |
| 11 | Working duty | Continuous |
3.Quality guarantee
In-house QC team control the quality
Third-party inspection acceptable

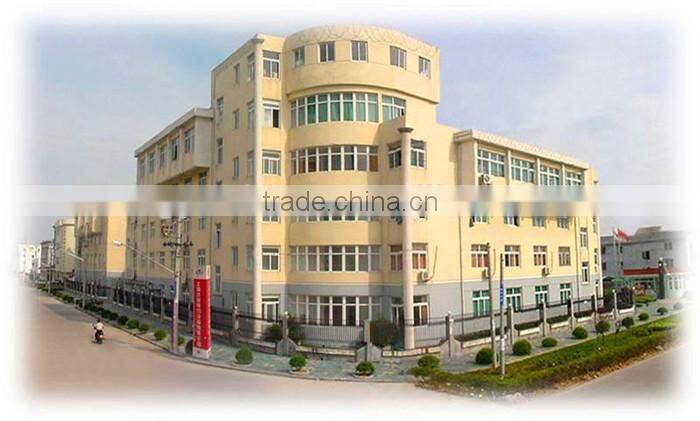

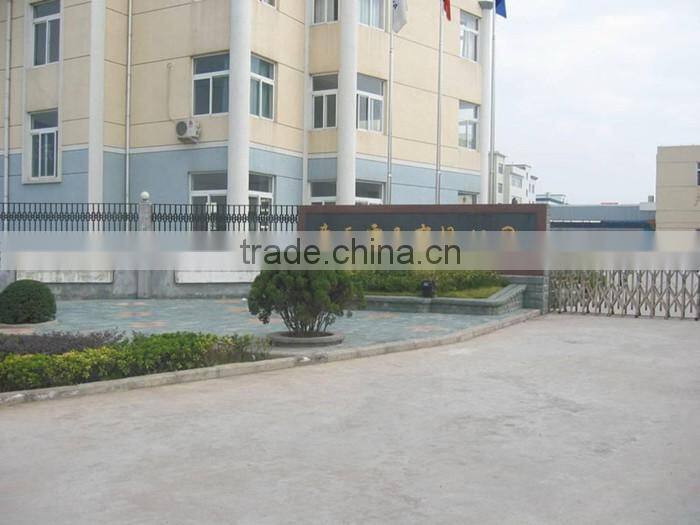

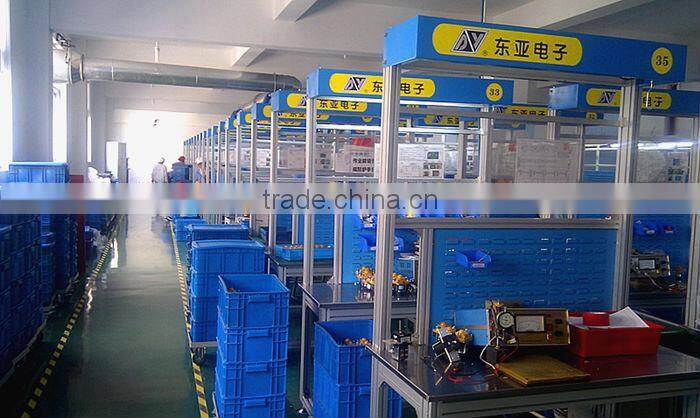

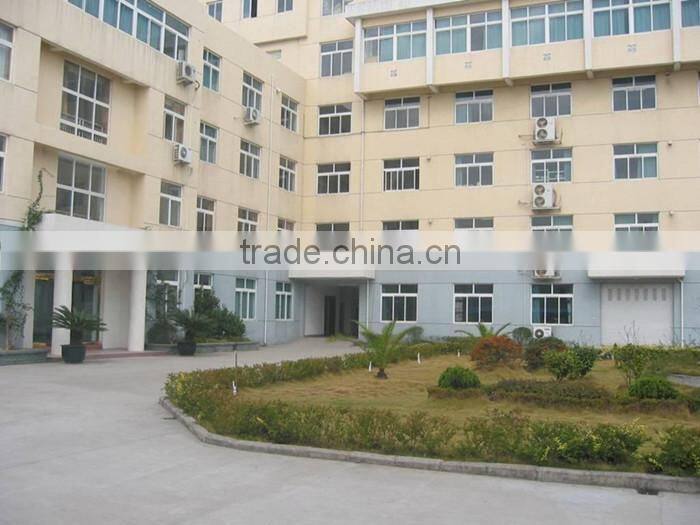

4.About our company
Contact Us
- Zhejiang Dongya Electronic Co., Ltd.
- Contact nameCinderella Ren Chat Now
- Phone86-577-62812228
- AddressWengyang Industrial Zone, Yueqing City, Zhejiang Province. China, Wenzhou, Zhejiang
