Home > Products > ZLJM-D NO Series DC Contactor > DC CONTACTOR RELAYZLJM-100D.S(SU-60A)

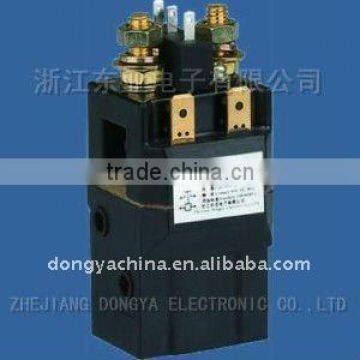

DC CONTACTOR RELAYZLJM-100D.S(SU-60A)
- Shanghai/Ningbo
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DY | |
| Model Number | ZLJM-100D.S | Electricity Type | DC | |
| Number of Pole | 2 | Main Circuit Rating Voltage | Other, 12VDC-120VDC | |
| Main Circuit Rating Current | Other, 100A |
Product Description
Specifications
DC CONTACTOR RELAYZLJM-100D.S(SU-60A)dc contactor contact form: SPST-N.O
coil rated volt: 12VDC-120VDC
Certificate: UL, ROHS
DC CONTACTOR RELAYZLJM-100D.S(SU-60A)
Model No. | ZLJM-100D.S |
Contact Arrangement | 1H (SPST-N.O.) |
Contact Material | AgCdO(12) |
Contact Rating(at Resistive Load) | 100A 80VDC 100A 250VAC |
Max. Switching Voltage | 80VDC,250VAC |
Max. Switching Power | 20000VA |
Endurance of Over Loading Current7Ie/10S | 560A/10S |
Coil Rated Voltage | 12,24,48,60,72,120VDC, etc. |
Pick-up Voltage | (40-70) % of coil rated voltage |
Drop-out Voltage | (5-30) % of coil rated voltage |
Contact Pressure Drop | At most 30mv when 50A |
Insulation Resistance | Min. 100MΩ at 500VDC |
Dielectric Strength (Between Insulated Electric Parts) | 1000VAC 50 HZ/60 HZ (1 minute) |
Operate Time | Max. 50mSec. |
Release Time | Max. 50mSec. |
Ambient Temper | -25oC~+60oC |
The shocking of fixed point | (10200)HZAcceleration≤3.5g |
Shocking | (60100) time/minuteAcceleration≤4g |
Mechanical Life | 10,000 Operations (no load) |
Electrical Life | 6,000 Operations (at rated load) |
