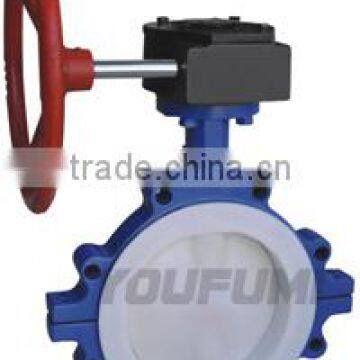

Lug Type PTFE lined Butterfly Valve Worm Gear

Lug Type PTFE lined Butterfly Valve Worm Gear

Technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10 , GB/T 12221

Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927

Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M

Lining Material: PTFE , PFA , PO ,FEP, EPDM

Nominal Diameter: 2"-80"(DN50~DN2000)
Pressure Range: Class150 , PN6 , PN10 , PN16

Connection Type: Flange ,Wafer , Lug Connection

Operation Method: Manual ,Worn gear ,Electric ,Pneumatic actuator

Products Description

1.The lined butterfly valves bi-directional flow is possible at maxmium operating pressure. Since the valve port corresponds to the piping diameter, a high flow capacity is guaranteed.

2.It features ease of maintenance, repeatable on-off, long life durability.
3.The concentric design is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.

4.Lining material: PTFE, PFA, FEP, GXPO etc.

5.Connection type: wafer, flange, lug etc.
6.Operation methods: manual, worm gear, electric, pneumatic and hydraulic actuator.

7.Youfumi lined three-way ball valves are available as per the needs of applications in additional sizes and other than standard materials.
