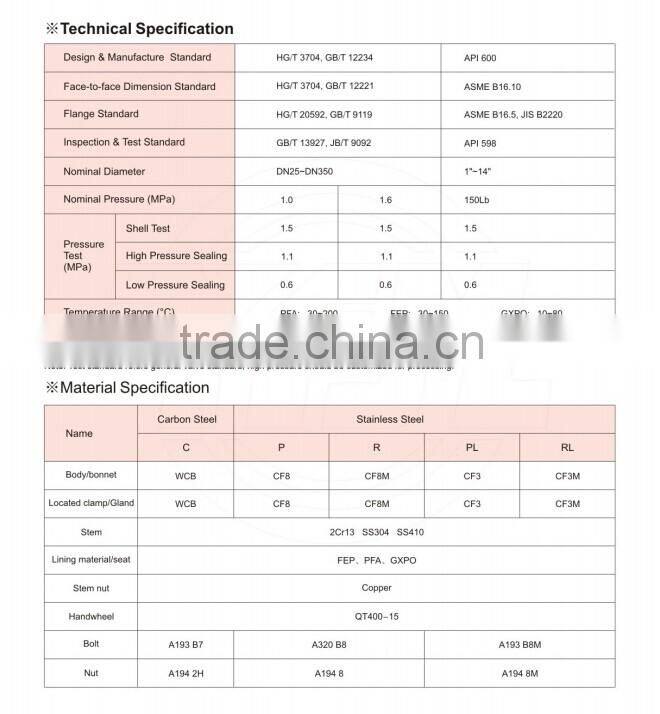

Technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704

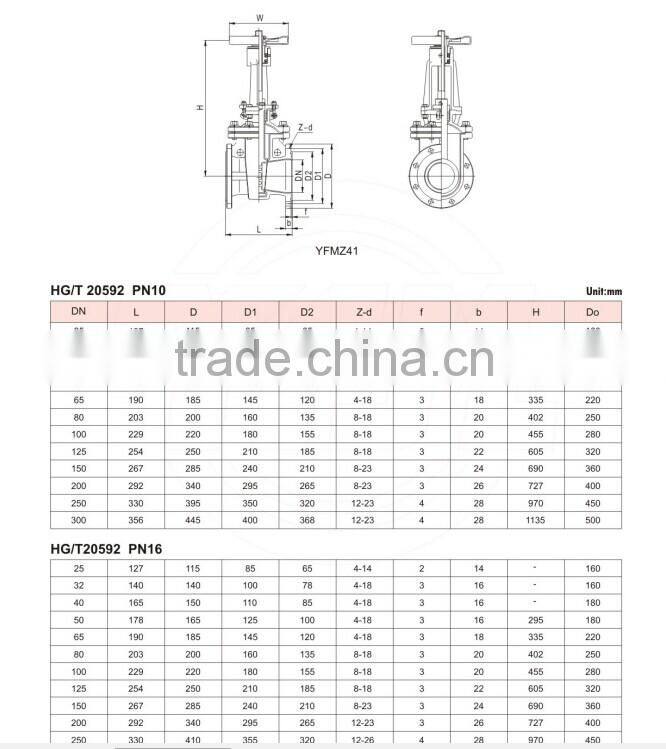

Face-to-face Dimension: ASME B16.10 , GB/T 12221

Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927

Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M

Lining Material: PTFE , PFA , PO ,FEP

Nominal Diameter: 1"-14"(DN25~DN350)
Pressure Range: Class150 , PN10 , PN16

Operation Method: Manual ,Worn gear ,Electric ,Pneumatic actuator

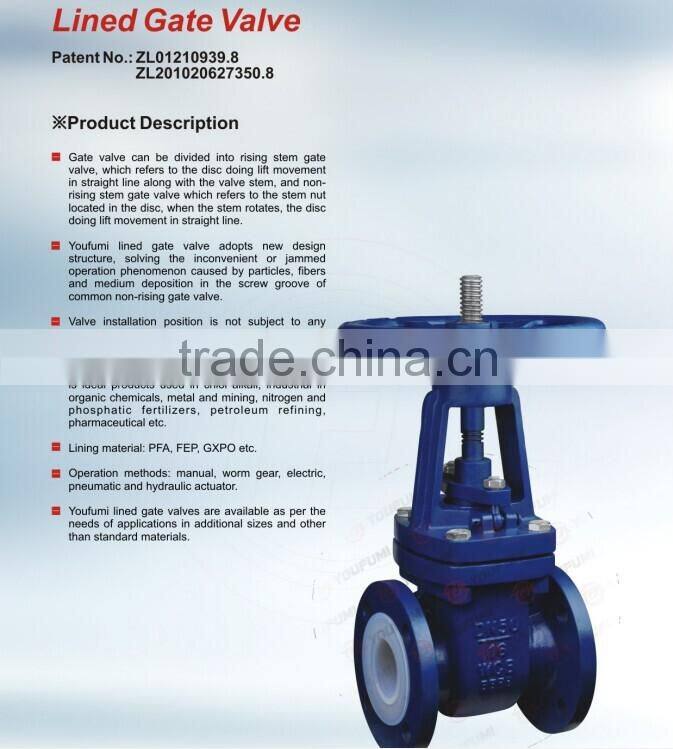

Product description:

1.Gate valve can be divided into rising stem gate valve, which refers to the disc doing lift movement in straight line along with the valve stem, and non-rising stem gate valve which refers to the stem nut located in the disc, when the stem rotates, the disc doing lift movement in straight line.

2.Youfumi lined gate valve adopts new design structure, solving the inconvenient or jammed operation phenomenon caused by particles, fibers and medium deposition in the screw groove of common non-rising gate valve.

3.Valve installation position is not subject to any restrictions.

4.It can sustain any corrosive medium in addition to the molten alkali metals and fluorine elements. It is ideal products used in chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc.

5.Lining material: PFA, FEP, GXPO etc.

6.Operation methods: manual, worm gear, electric, pneumatic and hydraulic actuator.

7.Youfumi lined gate valves are available as per the needs of applications in additional sizes and other than standard materials.

Material Specification:

1.Body/bonnet:WCB/CF8/CF8M/CF3/CF3M

2.Located clamp/Gland: WCB/CF8/CF8M/CF3/CF3M

3.Stem: 2Cr13; SS304; SS410

4.Lining material/Seat: FEP; PFA; GXPO

5.Stem nut: Copper

6.Handwheel: QT400-15

7.Bolt: A193 B7; A320 B8

8.Nut: A194 2H; A194 8
