2/2 Way AB Direct Action Series Solenoid Valve (air/water/steam) Water Valve ISO9001
- Guangzhou/Shenzhen
- T/T Credit Card
You May Like
-

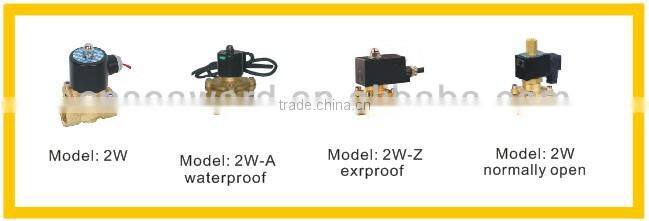

2W 2/2 Way Direct Action Big Orifice Solenoid Valve (air/water/steam) Water Valve
-
2W025 High Pressure 2/2 Way Direct Action Smaill Orifice Solenoid Valve (air/water/steam) Water Valve
-
2WB 2/2 Way Direct Action Stainless Steel Solenoid Valve (air/water/steam) Water Valve
-
2WBF 2/2 Way Direct Action Stainless Steel Solenoid Valve Water Valve ISO9001
-
PU220 2/2 Way Direct Action Brass Solenoid Valve (water,air,oil,gas) Water Valve ISO9001
-
PU225 2/2 Way Pilot Type Brass Solenoid Valve (water,air,oil) Water Valve ISO9001
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Material | Brass | Temperature of Media | Medium Temperature | |
| Media | Other, air, water, oil, steam | Port Size | G1/8,G3/8,G1/4,G1/2 | |
| Place of Origin | Guangdong, China | Model Number | AB31,AB41 | |
| Brand Name | SEAWARD |
Product Description
Specifications
High qualityFast delivery
Competitive price
Explosion-proof coil matchable, level :Ex mb I/II T4
Kinds of coils optional
1. Structure in sliding column mode: good tightness and sensitive reaction;
2. AB series have AB31 , AB41 and AB42 , normally closed and normally open optional;
3. Connection can b wire , DIM and round coi;
4. Several standard voltage grades are optional.
- Specification
Model | AB31-01-1 | AB31-01-2 | AB31-01-3 | AB31-01-4 | AB31-01-5 | AB31-01-6 |
Port size | 1/8" | |||||
Orifice Size | 1.5 | 2.0 | 3.0 | 3.5 | 4.0 | 5.0 |
CV valve | 0.1 | 0.15 | 0.31 | 0.42 | 0.54 | 0.8 |
Max working Pressure | 5 Mpa if steam is 1 | |||||
Working Medium | Air, Water ,Oil , Steam | |||||
Type | Normally close | |||||
Operating temperature | -5~80°C for NBR, -15~150°C FOR VITON, EPDM | |||||
Working voltage | AC380V,220V,110V,36V,24V DC220V,110V,36V,24V,12V | |||||
Model | AB41-02-1 | AB41-02-2 | AB41-02-3 | AB41-02-4 | AB41-02-5 | AB41-02-6 | AB41-02-7 | AB41-03 | AB41-04 |
Port size | 1/4" | 3/8’’ | 1/2’’ | ||||||
Orifice Size | 1.5 | 2.0 | 3.0 | 3.5 | 4.0 | 5.0 | 7.0 | 10 | |
CV valve | 0.1 | 0.15 | 0.31 | 0.42 | 0.54 | 0.8 | 1.0 | 1.88 | |
Max working Pressure | 5 Mpa if steam is 1 | ||||||||
Working Medium | Air, Water ,Oil , Steam | ||||||||
Type | Normally close | ||||||||
Operating temperature | -5~80°C for NBR, -15~150°C FOR VITON, EPDM | ||||||||
Working voltage | AC380V,220V,110V,36V,24V DC220V,110V,36V,24V,12V | ||||||||
- How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Guangzhou / Shenzhen Seaport
Delivery time: 10-30 days (Depend on your qty)
Sample: Available with freight collected
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.

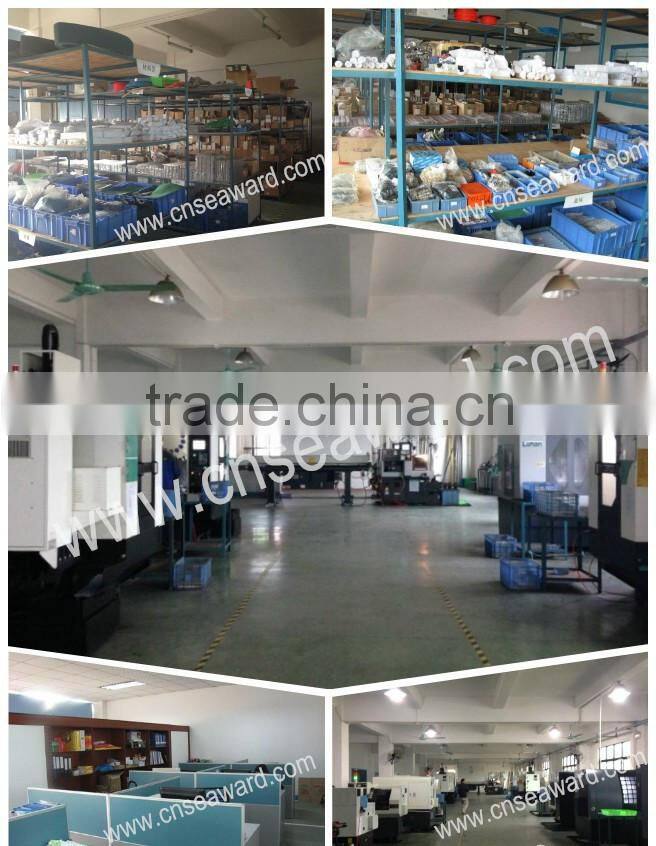

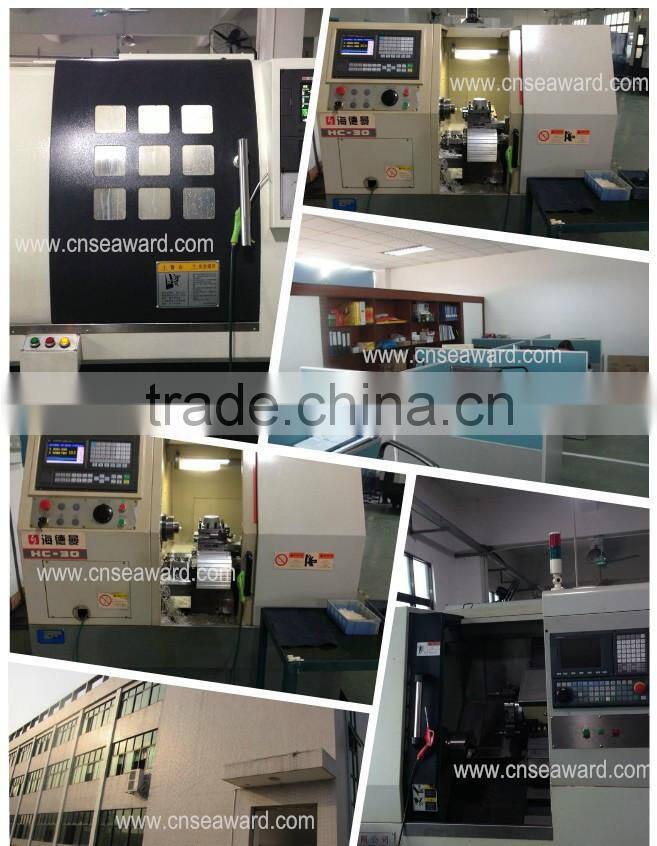

Factory: a management system in good order.

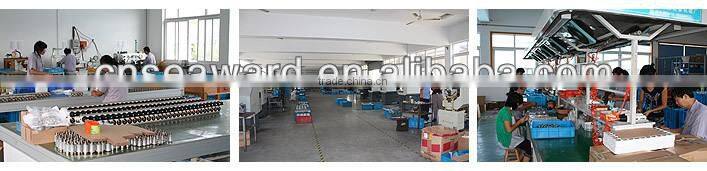

Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
High quality
Fast delivery
Competitive price
Explosion-proof coil matchable, level :Ex mb I/II T4
Kinds of coils optional
Customization is available.
