Aluminium Flexible Insulated Ducting 4"-20"
US$ 1.15 - 4.42
/ Piece
100 Pieces(Min. Order)
- shanghai port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | OEM | |
| Model Number | ADF-18 | Type | HVAC Systems |
Product Description
Specifications
Aluminium insulated Ducting1)thermal and acustic insulated flexible duct
2)diamater range:4"-20"(100-510mm)
3)OEM welcom
Specifications :
Thermal and acoustic insulated flexible duct
diameter range 100-510mm(4"-20")

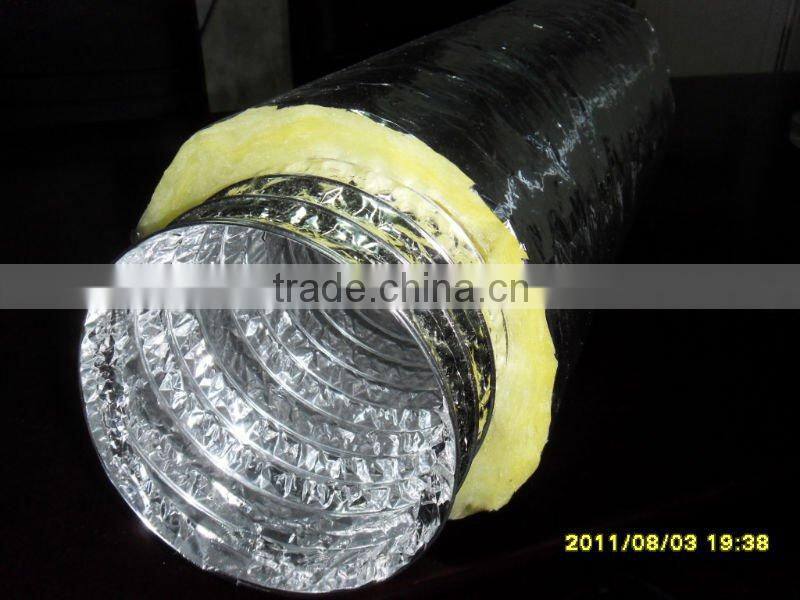

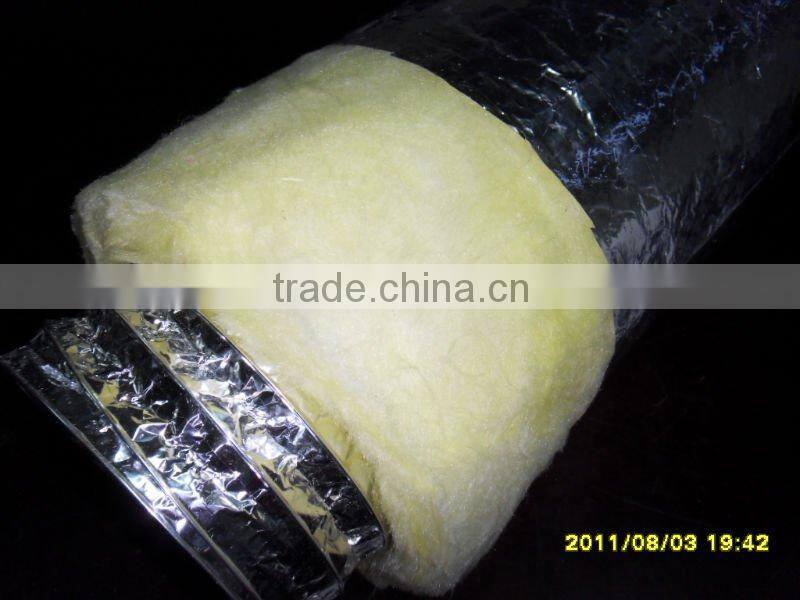

three ply construction :inner aluminum duct,middle fiberglass insulation,outer multi-layer aluminum/polyester cover .
Great helpful for reducing noise from inline fans
easy to install over either round or oval ducting
no special tools required round or oval ducting
fire resistant materials
excellent value price/performance
normal length 10meter (33ft)per pipe ,compressed to 1meter
customized length available
| Application: | ||||||||
| ADI is is a range of fully flexible insulated ducting. provides outstanding resistance | ||||||||
| and durability. suitable for use with heating, ventilation | ||||||||
| and air conditioning systems | ||||||||
| Parameter list | ||||||||
| Material of Duct | 2 layer aluminum 1 layer polyester | |||||||
| Thickness of Duct | 32 - 35 micron | |||||||
| Fire Resistance | Difficult to ingite | |||||||
| Temperature Range | -30 °C/+150 °C | |||||||
| Operating Pressure | 3000 Pa | |||||||
| Maximum Air Velocity | 30 m/s | |||||||
| Available Diameters | 50mm - 1200mm | |||||||
| Available Inches | 2" - 48" | |||||||
| Standard Length | 5m, 6m, 7.5m, 10m | |||||||
| Packing | Cardboard box | |||||||
| Mini order or massive production available | ||||||||
| Loading port: Shanghai port, Ningbo port | ||||||||
| Delivery time: 10-30 days, it depends on the ordered quantity. | ||||||||
| Free samples availbale, just need you bear the express cost. | ||||||||
| skype:baoby0701 | ||||||||
| Shanghai Xuanyuan Air-conditioning Equipment Co.,Ltd | ||||||||
| Address: 169 Sanlu Road,Minhang District,Shanghai CN | ||||||||
| Contact person: Alex Chen Mob: 86 136 2164 0901 | ||||||||
