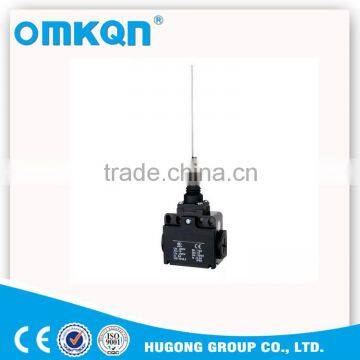

Import Cheap Goods Micro Limit Switch Low Voltage
- Ningbo Shanghai Shenzhen
- T/T Credit Card
You May Like
-
Brand Plastic Shell Steel Plunger Switch Limit with Selective Actuartors
-
Wholesale China Factory CE RoHS Telemecanique Electrical Limit Switches
-
Yueqing Manufacturer Metal Enclosure Steel Plunger 250VAC Basic CZE Limit Switch
-
Chinese Factory NO NC Metal Limit Switch IP66 Steel Plunger With Rubber Gasket
-
Good Performance Metal Shell Steel Roller Plunger 12V Mini Limit Switch
-
Industrial Control Thermoplastic Roller Lever Mental Cast High Temperature Resistance Limit Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OMKQN | |
| Model Number | CLS-361 | Protection Level | IP65 | |
| Operating Temperature | -5~+65C (with no icing), -5~+70C (with no icing) | Max. Current | 10A, 10A | |
| Max. Voltage | 250V, 250V |
Product Description
Welcome,my friend! Glad to introduce our company Hugong Group to you.
If you have any questions, please don't hesitate to ask me.
The specification of our Newest Products.
| Model No. | CLS-361 |
| Name | Limit switch |
| Double Break Mechanism | INO+INC Force Break snap action |
| Rated Voltage/Current | 10(4)A,125,250VAC/6(2)A,380VAC For inductance Load,Cosφ=0.4 |
| Contact resistance | 25mΩ max. (initial value) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
Dielectric strength | 1000VAC,50/60HZ for 1 minute between terminals of the same polarity |
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts | |
| 1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
| Electrical Life | 500,000 at 10A 250VAC Resistive |
Mechanical Life | 10,000,000 operations min.(under rated conditions) |
| Operating Speed | 5mm/s to 0.5m/s |
| Ambient Temperature Rised | Max 30℃ over ambient temperature at rated voltage/current |
| Degree of protection | IP65 |
| Shock Resistance | Mechanical durable: 1000m/s2 min. |
Malfunction: 300m/s2 min. | |
| Bare Wire Diameter | φ2 Max |
| Cable Diameter | φ12 Max |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Conformed Standards | Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
If you are confused on choosing a right type of limit switch, please contact us without hesitation.
Our Group introduction
1.With 10 years specializing in producing sensor selection manual,solid state relay,switching power supply
selection manual.
2.After years of development, the company has created a wealth of experience in sales and after-sales service team.
3.Strong enterprise innovation,with groups of professional engineers and salesman.
4.Our high quality have gain the market public praise from domestic.
5.We have very good and comprehensive after sales service.
6.We have no MOQ for client.
7.Manufacturers and users in the formation of a very high reputation.
1. Q: What certifications do you get?
A: We have CE.
2. Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
4. Q: How to pay?
A: T/T,PayPal and western union are acceptable.Full payment by T/T before shipment. Trade term:FOB CIF CNF DDP
5. Q: What is the delivery time?
A: Generally, 3-5 working days after the payment.We have the normal type on stock and we can make the delivery
within 3 days.If the customer has the special requirements,delivery time depends on the quantity ordered.
6. Q: What about the Package?
A: Standard export package (paper carton) for shipment with our company’s brand.Inner box with 10pcs products
sealed package.All of the productions are inspected carefully by QC before delivery.
7.Q:What is your company min.order?
A: No MOQ for stocking production.
Order a HQ container,price will be more favorable.
