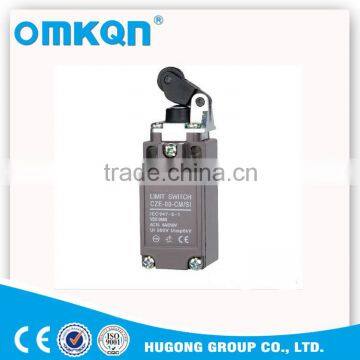

China Supplier Thermoplastic Roller Lever With Rubber Gasket Roller Type Limit Switches
- 50000 Piece / Pieces per Month
- Ningbo Shanghai Shenzhen
- T/T Credit Card
You May Like
-
High Margin Products Plastic Limit Switch For Lifts For Elevator Parts
-
220V Types of Electrical Switch Roller Lever Position Switch with CE
-
New Products Waterproof Motion Limit Switch For Tower Crane
-
Most Demanded Products Side Rotary Lever With Rubber Roller Limit Switch Cheap Price
-
China sales CS1-U recessed door magnetic sensor unique products to sell
-
Hugong Group Best selling imports D-A93 alarm system magnetic sensor import china goods
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OMKQN | |
| Model Number | CZE-00-CM/SI | Protection Level | IP65 | |
| Operating Temperature | -5~+65C (with no icing), -5~+70C (with no icing) | Max. Current | 10A, 10A | |
| Max. Voltage | 250V, 250V |
Product Description
Welcome,my friend! Glad to introduce our company Hugong Group to you.
If you have any questions, please don't hesitate to ask me.
The specification of our Newest Products.
| Model No. | CZE-00-CM/SI |
| Name | Limit switch |
| Opertaing frequency | 1 operat/sec(Hz) |
| Insulation resistance | 500VDC 100mΩ |
| Dielectric strength | 50/60 Hz per 1* 2500VAC |
| Rated thermal current | Ithe IEC947-5-1 10A |
| Rated insulation voltage | Ui IEC947-5-1 500VAC |
| Rated operating current | IEC947-5-1/EN60947-5-1 |
Category AC15 A300 le | 24V 10A |
125V 6A | |
230V 4A | |
400V 3A | |
| Category DC13 Q300 le | 24V 10A |
| 48V 4A | |
| 120V 1A | |
| 250V 0.4A | |
| Short circuit protective devices | IEC269(IEC947-5-1) 10A gl or gG type fuse |
| Protection against electric shock | Plastic Class Ⅱ |
| Metal Class Ⅰ | |
Electrical life | at 250VAC 6A with resistance load cos β =1 500.000cycles min |
at 250VAC 6A with resistance load cos β =0.4 500.000cycles min | |
| Contact resistance | IEC255-7 cat.3 Initial value 25MΩ |
| Vibration resistance | IEC68-2-6 0.35±15%(10÷55Hz±1 Hz)mm |
| Protection degree | EN 60529 IP66 |
| Distance between contacts | Snap action type 2×1,25mm |
Low action type 2×2mm | |
| Shock resistance | IEC68-2-27 11ms 30g |
| Terminals | Screw with combined notch and retravtable plate |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Conformed Standards | Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660 |
| Logo | Customized logo with Decal / Frosted / Print are available as request |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
If you are confused on choosing a right type of limit switch, please contact us without hesitation.
Our Group introduction
1.With 10 years specializing in producing sensor selection manual,solid state relay,switching power supply
selection manual.
2.After years of development, the company has created a wealth of experience in sales and after-sales service team.
3.Strong enterprise innovation,with groups of professional engineers and salesman.
4.Our high quality have gain the market public praise from domestic.
5.We have very good and comprehensive after sales service.
6.We have no MOQ for client.
7.Manufacturers and users in the formation of a very high reputation.
1. Q: What certifications do you get?
A: We have CE.
2. Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
4. Q: How to pay?
A: T/T,PayPal and western union are acceptable.Full payment by T/T before shipment. Trade term:FOB CIF CNF DDP
5. Q: What is the delivery time?
A: Generally, 3-5 working days after the payment.We have the normal type on stock and we can make the delivery
within 3 days.If the customer has the special requirements,delivery time depends on the quantity ordered.
6. Q: What about the Package?
A: Standard export package (paper carton) for shipment with our company’s brand.Inner box with 10pcs products
sealed package.All of the productions are inspected carefully by QC before delivery.
7.Q:What is your company min.order?
A: No MOQ for stocking production.
Order a HQ container,price will be more favorable.
