GEMCO Diesel Straw Hay Pellet Machine For Sale With CE&ISO
- Shanghai Qingdao Tianjin
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | GEMCO | Model Number | ZLSP200-400 | |
| Voltage | 380V,50HZ,3PHASE | Power(W) | 4-30KW | |
| Certification | CE&ISO | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
GEMCO Biomass Wood Pellet Mill/Plant For Sale
Capacity :100-10000kg/hr
Pellet Diameter:2.5-10mm
Biomass pellet is a kind of high efficient clean renewable energy with the advantages of saving energy and reducing carbon emissions. It is widely used in house-warming and power generation. It is an alternative fuel for non-renewableenergyresources of coal, oil, gas, etc. Biomass pellets are also easily stored and transported.

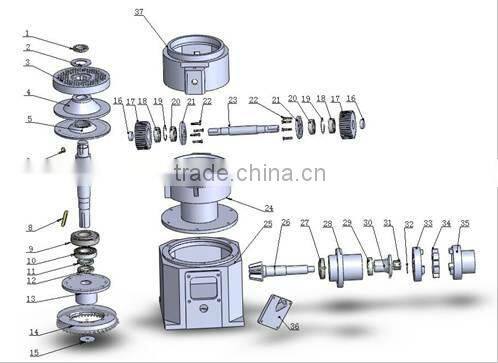

Structure and main parts of model ZLSP-D
Main specification and technical parameters
The output capacity depends on raw material you use, and the following data are based on pine saw dust pellet production. The animal feed pellets production capacity is double than that of biomass pellets. Electric motor can be customized according to customer’s requirements, including voltage and hertz. Please note that our mills operate in industrial power 380V/50Hz (China Standard), three phases.
| Machine Mode | Power (KW) | Capacity for Wood Pellets (kg/h) | Dimension (mm) | Weight (kg) |
| ZLSP120A D-Type | 8HP Diesel Engine | 30-50 | 870x440x730 | 140 |
| ZLSP200A D-Type | 15HP Diesel Engine | 80-120 | 1180x560x950 | 310 |
| ZLPS200B D-Type | 3-phase 7.5KW Motor | 80-120 | 1000x430x950 | 230 |
| ZLSP230A D-Type | 22HP Diesel | 150-200 | 1180x560x950 | 310 |
| ZLSP230B D-Type | 3-phase 7.5KW Motor | 150-200 | 1140x470x970 | 320 |
| ZLSP260B D-Type | 3-phase 15 KW Motor | 160-220 | 1200x500x1070 | 360 |
| ZLSP300B D-Type | 3-phase 22KW Motor | 200-250 | 1270x520x1070 | 450 |
| ZLSP360C D-Type | 3-pahse 22KW Motor | 250-300 | 1270x520x1070 | 500 |
| ZLSP400C D-Type | 3-phase 22KW Motor | 300-350 | 1520x600x1150 | 660 |
| ZLSP200 R-Type | 3-phase 7.5KW Motor | 100-120 | 1150x560x750 | 300 |
| ZLSP300 R-Type | 3-phase 22KW Motor | 250-350 | 1350x650x800 | 420 |
| ZLSP350 R-Type | 3-phase 30KW Motor | 450-500 | 1650X1000X1200 | 800 |
ZLSP450 R-Type | 3-phase 37KW | 600-700 | 1800x1100x1350 | 1100 |
Moisture Content
The requirement of moisture depends on different kinds of raw materials.
The moisture content of sawdust for the die-driving Pellet Mill ZLSP-D is specified to 10%-18%;
and roller-driving Pellet Mill ZLSP-R is 10%-14%. The materials should be mixed evenly.
Requested size
The maximum size of the materials cannot exceed the diameter of the pelletizing hole.
For example, if the diameter of the hole is 6mm, the length of the saw dust cannot be more than 6mm.
Please ensure the proper size of raw material according to the diameter of the hole.
Composition
This mill can process both single kind material and mixture with different materials.
Pieces of stone and iron or other hard impurities cannot be mixed into the material;
otherwise they will damage the die and roller.
Binder
Our mills are designed to pelletize without any additive. However we recommend using a binder,
which can increase capacity and extend service life of die, roller and other wearing parts.
About products

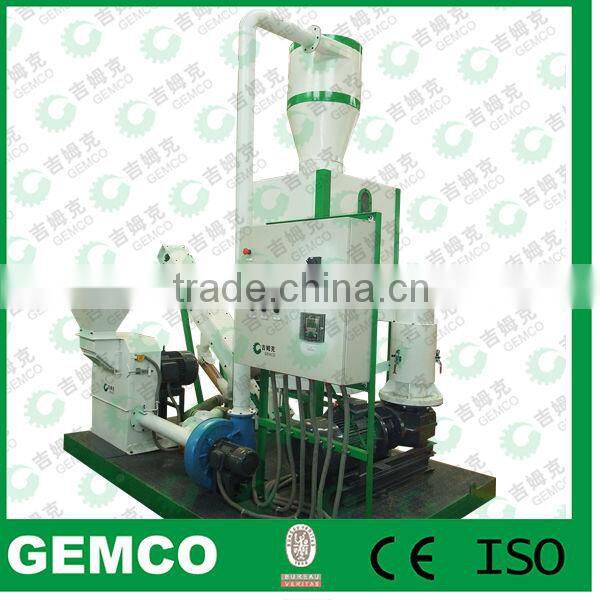

With functions of grinding, mixing, conditioning, pelletizing and cooling, etc, GMC-ZCP300D biomass pellet complete plant, which consists of hammer mill, separation system, air and exhaust system, mixed feeder, conditioning system, pellet mill, sorting system, cooling system and screw conveyor, etc, meets pellet production requirements for fodder and fuel. The major process is controlled by frequency conversion adjustment.
Main technical parameters
No. | Parameter | Unit | Parameter | Note |
1 | Raw material |
| Sawdust, tree branch and twig, peanut shell, wood refuse, straw, animal feed,etc. |
|
2 | Pellet size | mm | 2.5<diameter<12 |
|
3 | Pellet density | t/m³ | 0.6-1.2 |
|
4 | Capacity | Kg/h | 250-350(sawdust) | pine |
350-500(animal feed) | Corn 65%,oil cake20%,rice bran or wheat bran | |||
5 | Total power | KW | 41.25 |
|
6 | Package size | mm | 1960*3500*3500 |
|
Operational principles
Material after being broken into powdery particle by the hammer mill will be sucked into the storage bin through cyclone and then conveyed into pellet mill by adjustable-speed feeder. The finished pellets will be cooled in cooling conveyor through a vibrating screen. Cooling the pellets to ambient temperature makes it easier to transport and storage.
Technological process
Hammer mill-------fan-----cyclone----material mixing bin---- feeder--- pellet mill
--------vibrating screen --------- screw conveyor--------- bulk product

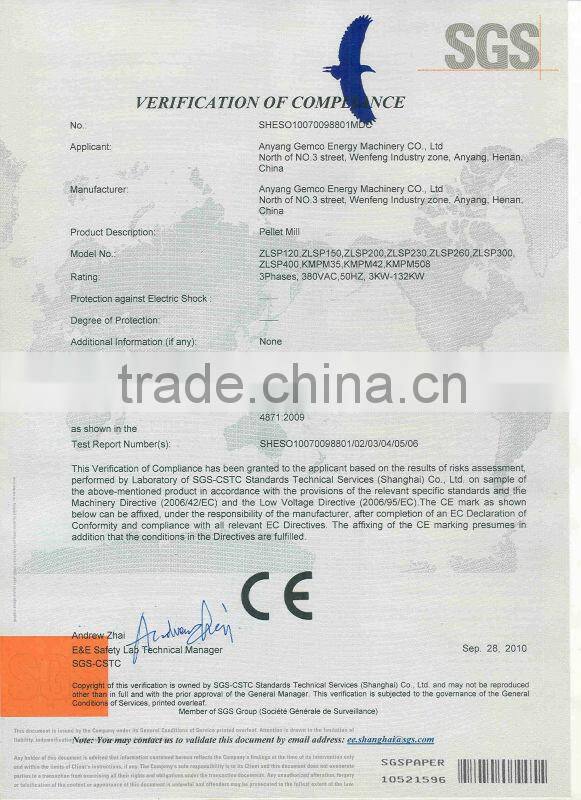

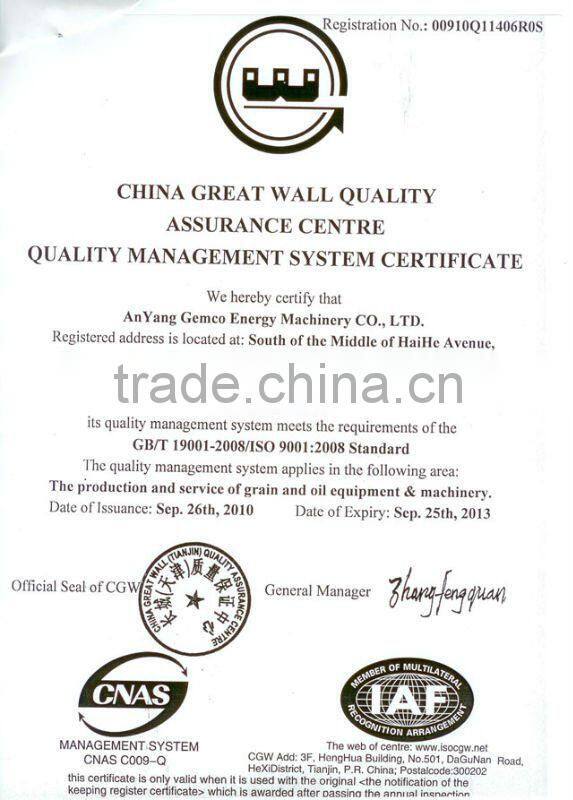

Certification
