Home > Products > 1Amp-60Amp Solar Charge Controller > Solar Controller for Solar Energy System 10Amp 12V XTD1210

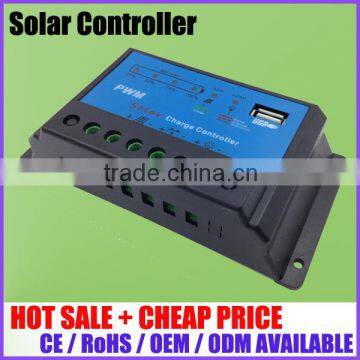

Solar Controller for Solar Energy System 10Amp 12V XTD1210
Negotiable
/ Piece
1 Piece(Min. Order)
- Guangzhou/Shenzhen
You May Like
-
Solar Controller for Solar Energy System 20Amp 12V XTD1220
-
Solar Charge Controller Solar Energy System Controller 12V/24V 5A 10A KT1205/1210
-
Solar Charger Controller Solar Energy System Controller, 48V 20A CY20A-Series
-
solar panel charge controller with LCD 20A, 12V, 24V, LD2420C
-
30A PWM solar energy controller, for 1500W off grid system, 48V, KTF4830
-
10 Amps solar battery charge controller with timer control, 48V, KTF4810
Product Details
| Place of Origin | Guangdong, China | Brand Name | Netural packing | |
| Model Number | XTD1210 | Application | Solar System Controller | |
| Rated Voltage | 12V | Maximum Current | 10A |
Product Description
XTD-Series
PWM Solar charge controller
Feature
1.Build-in industrial micro controller.
2. Input and output LED display,asimple 4-stage battery capacity indicator.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
6.Model XTD1210/XTD1220 is equiped with USB cell phone charger and an one-to-all output cable.
Specification
MODEL | XTD1210 | XTD1220 | XTD110 | XTD120 |
Batt voltage | 12V | |||
Charge current | 10A | 20A | 10A | 20A |
Discharge current | 10A | 20A | 10A | 20A |
Max Solar input | 21V | |||
Charge drop | <0.2V | |||
Discharge drop | <0.25V | |||
Equalization | 14.8V | |||
Bulk | 14.5V | |||
Acceptance | 14.2V PWM | |||
Float | 13.8V | |||
Charge reconnect | 13.0V | |||
Discharge stop | 11.2V | |||
Discharge reconnect | 12.6V | |||
Self-consume | <10mA | |||
Temperature compensation | N/C | |||
USB output | 5V 3A | N/C | ||
Operating temperature | -35~+60 ℃ | |||
Size/Weight | 133*70*35mm /150g | |||
*Product specifications are subject to change without prior notice
