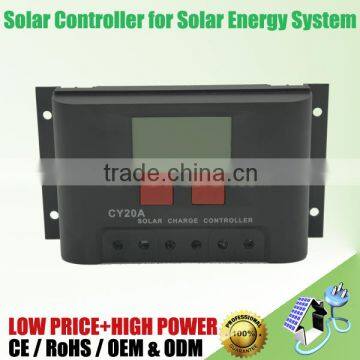

Solar Charge Controller Solar Energy System Controller, 12V 24V 10A CY20A-1210
Negotiable
/ Piece
100 Pieces(Min. Order)
- Guangzhou/Shenzhen
You May Like
-
PWM Solar Charge Controller / Voltage Regulator 12V 10A XTD1210
-
solar panel charge controller with LCD 20A, 12V, 24V, CY-K20A
-
Solar Battery Controller, Battery Charging and Discharging controller 48V 30A CY20A-4830
-
Solar Battery Controller, Battery Charging and Discharging controller 12V 20A XTD1220
-
Solar Controller with LCD display 12V 24V 10A CY20A-1210
-
Solar Panel Controller, 48V 20A CY20A-4820
Product Details
| Place of Origin | Guangdong, China | Brand Name | Coretek | |
| Model Number | CY20A-1210 | Application | Solar System Controller | |
| Rated Voltage | Other, 12V/24V Auto-adapt | Maximum Current | 10A |
Product Description
CY-Series
PWM Solar Charge Controller
Features
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Specifications
MODEL | CY20A | ||||||
Batt voltage | 12V/24V auto | 48V | |||||
Charge current | 10A | 20A | 30A | 20A | 30A | ||
Discharge current | 10A | 20A | 30A | 20A | 30A | ||
Max Solar input | <50V | <80V | |||||
Equalization | B01 sealed | B02 Gel | B03 flood | ||||
14.4V | 14.2V | 14.6V | |||||
Float charge | 13.7V(defaul,adjustable) | ||||||
Discharge stop | 10.7V(defaul,adjustable) | ||||||
Discharge reconnect | 12.6V(defaul,adjustable) | ||||||
USB output | 5V/3A | ||||||
Self-consume | <10mA | ||||||
Operating temperature | -35~+60 ℃ | ||||||
Size/Weight | 170*110*50mm /250g | ||||||
*all red color voltage X2 ,X4 while using 24V /48V system.
*Product specifications are subject to change without prior notice.
