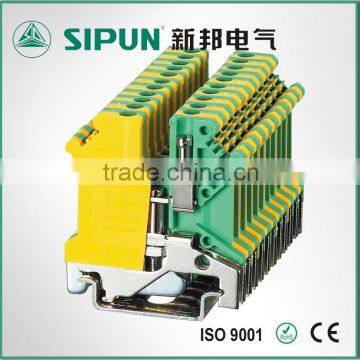

SUK2.5 earthed din rail screw type terminal block
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
SUK10 grouding din rail screw type terminal block
-
SUK16 grouding din rail screw type terminal block
-
SUK35 grouding din rail screw type terminal block
-
UK2.5 Screw Terminal Type electronic blocks with din rail
-
1-60 Number of Contacts Phoenix contact type din rail terminal blocks
-
1 - 10 Number of Contacts and 1-30AWG Conductor Size terminal block
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Sipun | |
| Model Number | SUK-2.5JD | Number of Contacts | 1 - 10 | |
| Conductor Size | 11 - 20 AWG | Type | Other, grounding terminal |
Product Description
SUK2.5 earthed din rail screw type terminal block
Descruotion:
1.General specifications SUK-2.5JD terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : 0.2-2.5mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-2.5JD |
| T/W/H(mm) | 2.5*43*46 |
| Clamping screw | M3 |
| Torque | 0.5-0.8NM |
| Stripping Length | 8mm |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |
SUK-JD series can be install in TH35 and G32 rail. have international standard grounding color ( kelly ), conform to IEC60947-7-2. bottom have screw, connect to the ground lead. handiness and simplicity.
Product shows:
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
