SEK-2.5 Industrial Electrical din rail terminal block
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
din rail Power Distribution Type 1-60 Number of conector terminal block
-
din rail Power Distribution Type screw terminal block
-
2.5sq din rail Power Distribution Type Industrial Electrical terminal block
-
2.5sq din rail industrial electrical terminal block
-
1~60 number of conector industrial electrical terminal block for din rail
-
din rail screw 1~60 number of conector industrial electrical terminal block
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SIPUN | |
| Model Number | SEK-2.5 | Number of Contacts | 1 - 10 | |
| Conductor Size | 11 - 20 AWG | Type | Screw |
Product Description
SEK-2.5 Industrial Electrical din rail terminal block
Descruotion:
1.General specifications SEK-2.5 terminal blocks Compliance with international standards : IEC60947-7-1.
2.Terminal can used in TH35 and G32 rail.
3.Insulation material is PA66, Antiflaming and anticorrosion.
4.Small volume, complete range of articles.
5.self locking function, crimping fastness.
Specifications:
| Model Number | SEK-2.5 |

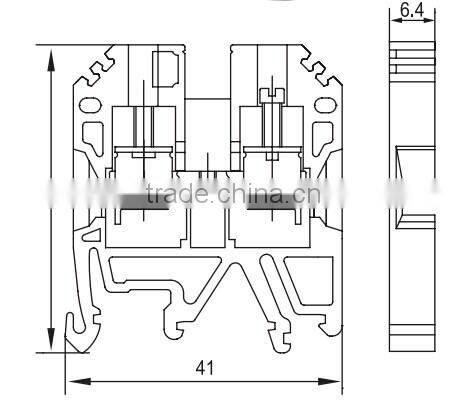

| T/W/H(mm) | 6.4*41*41 |
| Clamping screw | M2.5 |
| Torque | 0.4-0.8NM |
| Stripping Length | 10mm |
| Rated Voltage | 660V |
| Reted Current | 24A |
| Cross Section | 2.5mm2 |
| Wire cross section, strand insulation | 0.5-6mm2 |
| Wire cross section, stranded conductor | 1.5-4mm2 |
| stranded conductor with tube head | 0.5-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

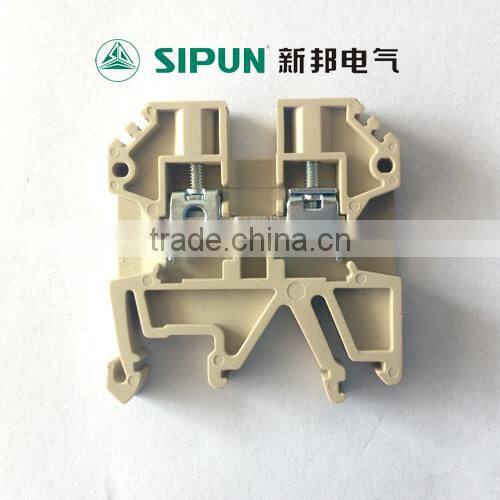

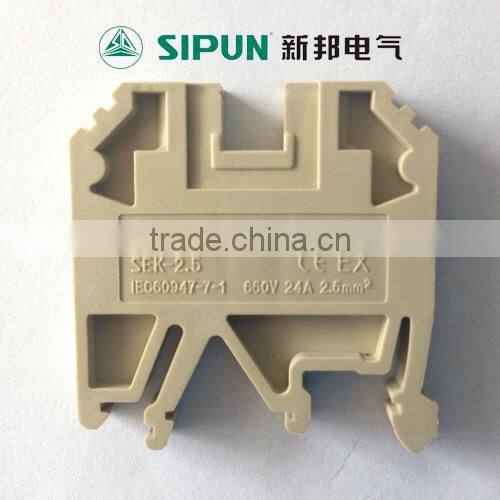

Product shows:
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:

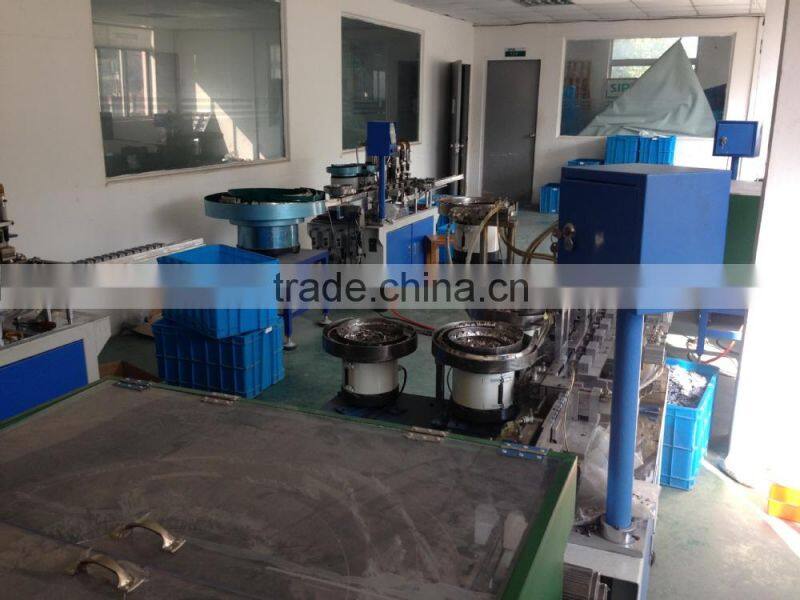

Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
