SDJ 300A Three Pole Connection Terminal for Large Current
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
SDJ 60A Four Pole Connection Terminal for Large Current
-
SDJ 100A Four Pole Connection Terminal for Large Current
-
SDJ 150A Three Pole Connection Terminal for Large Current
-
SDJ 200A Three Pole Connection Terminal for Large Current
-
SDJ 600V 60A Industrial Electrical Connection Terminal Block
-
SDJ 150A Three Pole Plate Fixed Type Terminal Block
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Sipun | |
| Model Number | SDJ-3003 | Number of Contacts | 1 - 10 | |
| Conductor Size | 1- 5 AWG | Type | Screw |
Product Description
Specifications
1.Certification:RoHS,Ex,CE2.The range of wire:10-240mm
3.high quality and competitive price
4.Standard:IEC60947-7-1,ISO9001
SDJ 300A three pole connection terminal for large current
Descruotion:
SDJ series use the plate screw splice closed integral structure.Rated voltage 600V, rated current have 60A, 100A, 150A, 200A, 300A, 400A, 600A type. Also have 3 pole, 4 pole type. Wire range 10~240mm². This product simple construction, easy to install, concert with TO type terminal, can used in many electrical equipment for large current wiring.
This series comes with dust cover and PVC white sign.

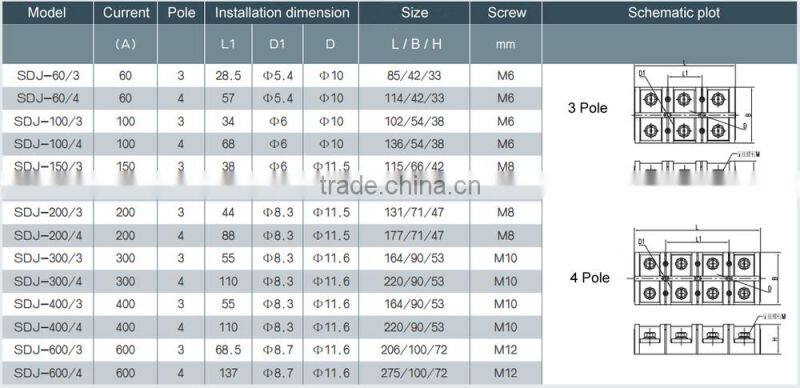

Specifications:
SDJ series can perforation in the bottom direct to install, installation size check the schematic plot please.
Product shows ( taken in kind ):
we can customize your color:
Compare with others:
Wiring diagram and Installation:
SDJ series use the screw to fixation :
This is SDJ 200A inner body
Our workshop:

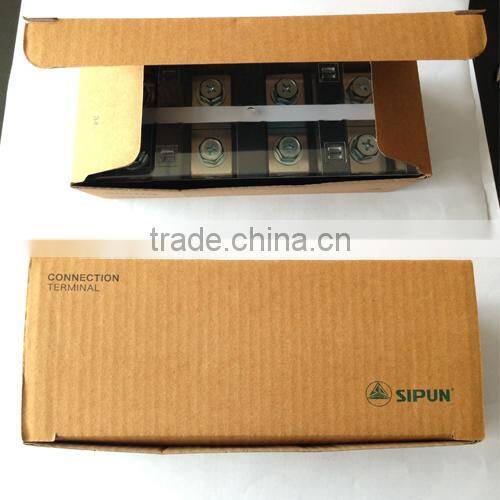

Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
