JF5 S3L Plate Screw Triple Deck Connector Terminal
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SIPUN | |
| Model Number | JF5-2.5S3L | Number of Contacts | 1 - 10 | |
| Conductor Size | 11 - 20 AWG | Type | Screw |
Product Description
JF5 S3L plate screw triple deck connector terminal
Feature
1.Reasonable design
2.General-purpose
3.high quality
4.Complete products series
5.Large cross-section wire connection
6.Good conductive
Specification
| Model Number | JF5-2.5S3L |

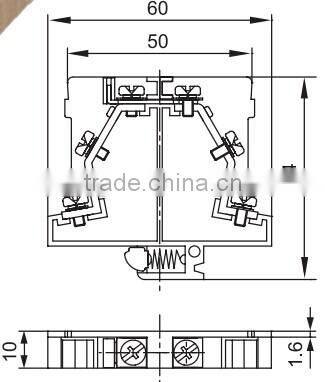

| T/W/H(mm) | 10*60*54 |
| Clamping screw | M4 |
| Torque | 1.2NM |
| Stripping Length | 8mm |
| Rated Voltage | 660V |
| Reted Current | 24A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 1.0-2.5mm2 |
| Wire cross section, stranded | 1.0-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |
JF5 series is apply to 50HZ/60HZ , 660 or 440 VDC electric wire connection. It conform to GB/T14048.1-2006, JB/TT9659.1-2006, IEC60947-7-1.
JF5 used the PC material, can pass the 960℃ glow wire experiment. can working in the 120℃ environment.

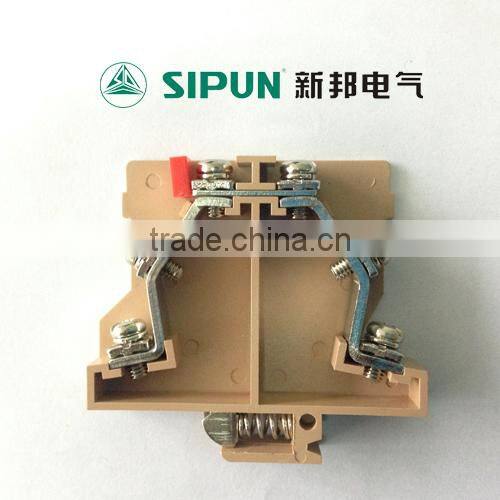

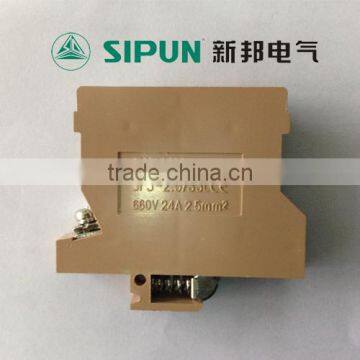

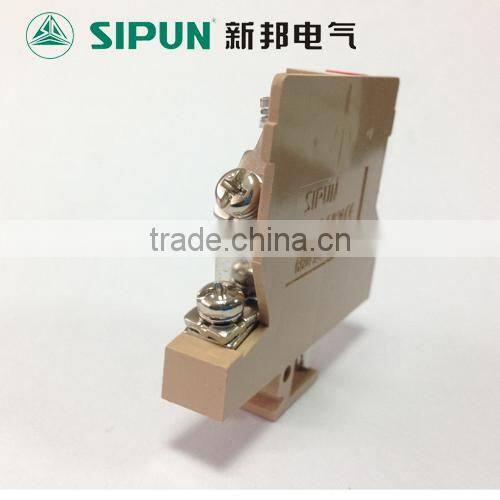

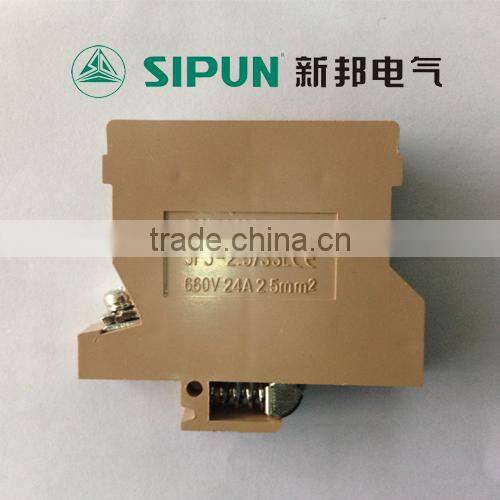

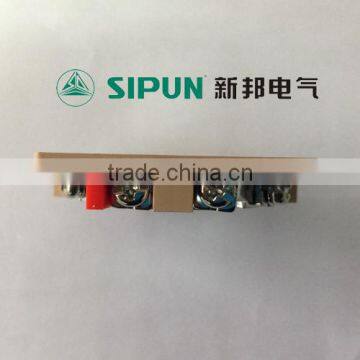

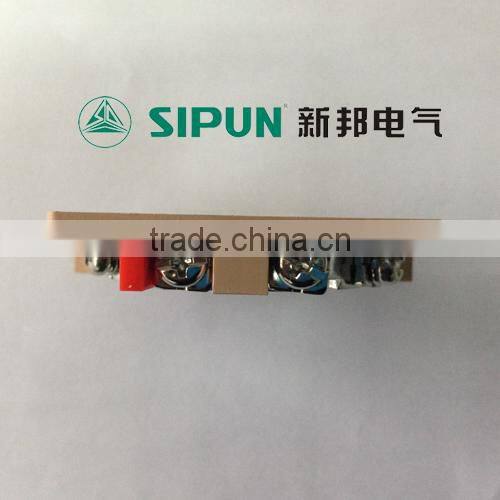

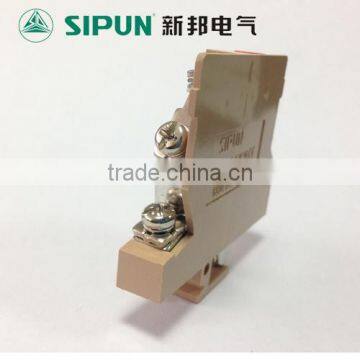

Product Show (taken in kind) :
we can customize your color:

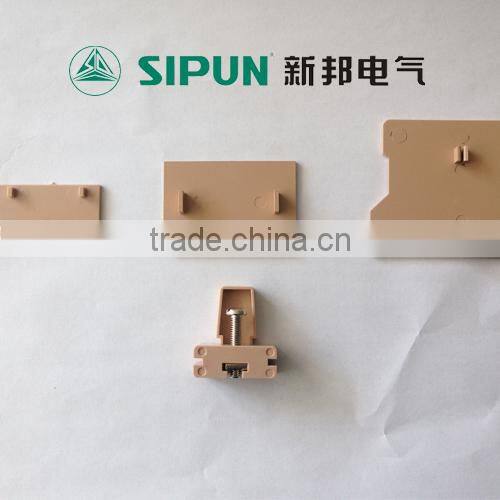

Parts:
Compare with others:
Wiring diagram:

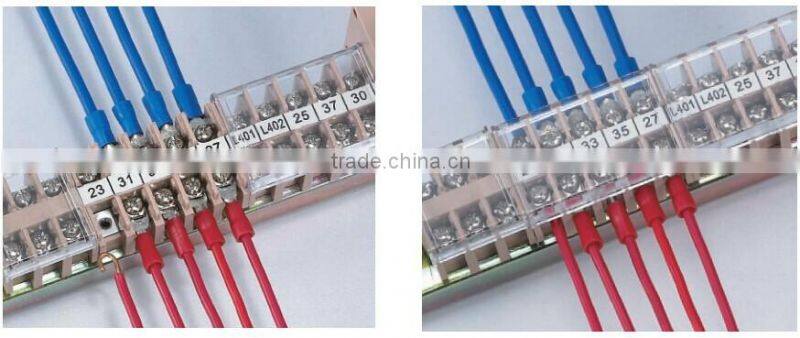

Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
