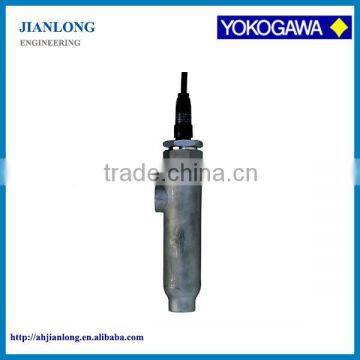

SC8SG Yokogawa Conductivity sensor with four electrodes Quality Choice

SC8SG Yokogawa Conductivity sensor with four electrodes

SC8sg Yokogawa conductivity sensor, work with an FLXA202, FLXA21 or SC450G Conductivity Converter, which may be inserted into the process piping, for direct measurement of process liquids, or a sample of the liquid may be obtained via a piping connection, and widely used in applications such as liquid conductivity measurement for manufacturing processes and pure water resistivity measurement in the semiconductor, food, pharmaceutical, and power industries. A wide variety of mountings are available including screw-in type, flow-through type with screw joint, and flow-through type with flange.

SC8SG Conductivity Detector may use sensors with cell constant of 0.01 cm-1, to measure conductivity of 0 to 100 μS/cm, or sensors with cell constant of 10 cm-1, to measure conductivity of 0 to 1000 mS/cm. The sensors with cell constants of 10 cm-1 may be two-electrode or four-electrode types: four electrode types have the advantage that they are much less likely to be affected by polarization related errors, so can be more consistent and accurate both with liquids that are likely to adhere to and stain the electrodes, and with liquids having high conductivity.
