Home > Products > solar panel > SR125m 80Wp Solar panel solar cell approved in Europe
SR125m 80Wp Solar panel solar cell approved in Europe
USD $0.75 - $0.85
/ Watt
1500 Watts(Min.Order)
- 300000 Watt / Watts per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
solar panels solar cells 2w-280w with mono /poly silicon material
-
Mono silicon material solar panel 200w mono cells
-
150wp solar panels with poly crystalline silicon materials
-
140Wp solar panels 150w for domestic solar systm kit mono crystalline silicon material
-
Home solar energy system 140wp solar panels with mono cells 36pcs
-
130Wp mono cells solar panels with home solar system generator
Product Details
| Place of Origin | Anhui, China | Brand Name | JN soalr | |
| Model Number | SR125m80w | Material | Monocrystalline Silicon | |
| Size | 1200*540*35mm | Number of Cells | 36(4*9) | |
| Max. Power | 100Wp |
Product Description

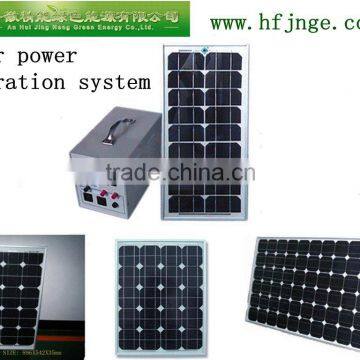

Solar panel /Solar cells 100wp with 36cells 125mm for solar system
| Electrical Characteristics | |||||||||
| Characteristics | SR125M-80 | SR125M-90 | SR125M-100 | SR125M-110 | |||||
| Maximum power at STC (Pmax) | 80Wp | 90Wp | 100Wp | 110Wp | |||||
| Open-Circuit Voltage(Voc) | 21.85V | 22.25V | 22.55V | 22.75V | |||||
| Optimum Operating Voltage(Vmp) | 17.6V | 18V | 18.4V | 18.8V | |||||
| Short-Circuit Current (Isc) | 5.02A | 5.39A | 5.75A | 6.15A | |||||
| Optimum Operating Current(Imp) | 4.55A | 5A | 5.43A | 5.85A | |||||
| Module Efficiency | 14.00% | 16.10% | 17.80% | 18.10% | |||||
| Solar Cell Eficiency | 14.75% | 16.75% | 18.50% | 19% | |||||
| Operating Temperature | -40°C to + 85°C | ||||||||
| Maximum System Voltage | 1000V DC | ||||||||
| Seriec Fuse Rating | 11A | ||||||||
| Power Tolerance | ±1.5% | ||||||||
| |||||||||
| Mechanical Characteristics | |||||||||
| Solar cell | Mono-crystalline 125×125mm (5inch) | ||||||||
| No.of cells | 36(4×9) | ||||||||
| Dimensions | 1200×540×35mm | ||||||||
| Weight | 8.5kg | ||||||||
| Front Glass | 3.2mm tempered glass | ||||||||
| Frame | Anodized aluminium alloy | ||||||||
| Junction Box | PV-RH701 (TUV) | ||||||||
Bitmap
| |||||||||
| Temperature Coefficents | |||||||||
| Nominal Operating Cell Temperature (NOCT) 45±2°C | |||||||||
| Temperature Coefficent of Pmax -(0.47±0.05)%/°C | |||||||||
| Temperature Coefficent of Voc -(0.34±0.01)%/°C | |||||||||
| Temperature Coefficent of Isc -(0.055±0.01)%/°C | |||||||||
| WARRANTY | |||||||||
| Manufacturing | 10years | ||||||||
| Power production | 90% =12 years | ||||||||
| 80% =25 years | |||||||||
