Home > Products > solar panel > high efficient 250W-280Watts Solar Panels /Soalr cells Supplied Directly From Solar Power Plant

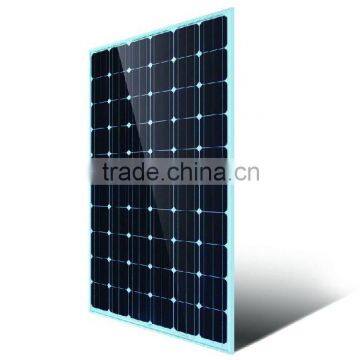

high efficient 250W-280Watts Solar Panels /Soalr cells Supplied Directly From Solar Power Plant
USD $0.75 - $0.85
/ Watt
1500 Watts(Min.Order)
- 300000 Watt / Watts per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
panel 200w with mono /poly silicon material
-
200w solar panel with mono /poly silicon material amorphous silicon solar panel
-
SR125m 80Wp solar panel manufacturing machines
-
SR125m 90Wp solar panel manufacturing machines
-
SR125m 100Wp solar panel manufacturing machines
-
SR125m 110Wp solar panel manufacturing machines
Product Details
| Place of Origin | Anhui, China | Brand Name | JN | |
| Model Number | PMS | Material | Monocrystalline Silicon | |
| Size | 1640*92*5mm | Number of Cells | 60(6*10) | |
| Max. Power | 280Wp |
Product Description
Product Description
| Electrical Characteristics | ||||
| Characteristics | SR156M-250 | SR156M-260 | SR156M-270 | SR156M-280 |
| Maximum power at STC (Pmax) | 250Wp | 260Wp | 270Wp | 280Wp |
| Open-Circuit Voltage(Voc) | 38V | 38.3V | 38.7V | 39.0V |
| Optimum Operating Voltage(Vmp) | 31.2V | 31.8V | 32.4V | 33.0V |
| Short-Circuit Current (Isc) | 8.65A | 8.77A | 8.89A | 9.01A |
| Optimum Operating Current(Imp) | 8.02A | 8.17A | 8.33A | 8.48A |
| Module Efficiency | 16.50% | 17.10% | 17.70% | 18.30% |
| Solar Cell Eficiency | 17.25% | 17.75% | 18.25% | 18.75% |
| Operating Temperature | -40°C to + 85°C | |||
| Maximum System Voltage | 1000V DC | |||
| Seriec Fuse Rating | 16A | |||
| Power Tolerance | ±1.5% | |||
| STC : Irradiance 1000W/m² , Module temperature 25°C,AM=1.5 | ||||
| Mechanical Characteristics | ||||
| Solar cell | Mono -crystalline 156×156mm (6inch) | |||
| No.of cells | 60(6×10) | |||
| Dimensions | 1640×992×45mm | |||
| Weight | 20kg | |||
| Bitmap | 3.2mm tempered glass | |||
| Front Glass | ||||
| Frame | Anodized aluminium alloy | |||
| Junction Box | PV-RH701 (TUV) | |||
| Temperature Coefficents | ||||
| Temperature Coefficents | ||||
| Temperature Coefficents | ||||
| Nominal Operating Cell Temperature (NOCT) 45±2°C | ||||
| Temperature Coefficent of Pmax -(0.47±0.05)%/°C | ||||
| Temperature Coefficent of Voc -(0.34±0.01)%/°C | ||||
| Temperature Coefficent of Isc -(0.055±0.01)%/°C | ||||
| WARRANTY | ||||
| Manufacturing | 10years | |||
| Power production | 90% =12 years | |||
| 80% =25 years | ||||
