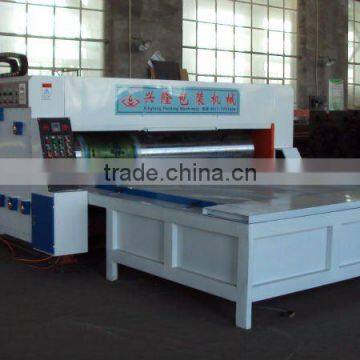

Semi-automatic corrugated printing machine
- Tianjin Port
- T/T
You May Like
Product Details
| Condition | New | Application | Commodity | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Power | 3.0-7.5KW | Place of Origin | Hebei, China | |
| Brand Name | XINGLONG | Model Number | YFQ |
Product Description
Specifications
1. Work table combined with main machine2. print, slotting, slotting
3.multicolor for choice
corrugated printing machine
Main Technology Parameter:
Effective width | 1800mm |
Sheet size | 1750mm×1500mm |
Roller diameter | 480mm |
Effective printing area | 1500mm×1470mm |
Machine weight | 5000kg |
Motor power | 4.0kw |
Effective width | 2000mm |
Sheet size | 1950mm×1500mm |
Roller diameter | 480mm |
Effective printing area | 1700mm×1470mm |
Machine weight | 5500kg |
Motor power | 4.0kw |
Main Technology Parameter:
Effective width | 2200mm |
Sheet size | 2150mm×1500mm |
Roller diameter | 480mm |
Effective printing area | 1900mm×1470mm |
Machine weight | 6000kg |
Motor power | 5.5kw |
Effective width | 2500mm |
Sheet size | 2450mm×1500mm |
Roller diameter | 480mm |
Effective printing area | 2200mm×1470mm |
Machine weight | 6500kg |
Motor power | 5.5kw |
Effective width | 2800mm |
Sheet size | 2750mm×1500mm |
Roller diameter | 480mm |
Effective printing area | 2500mm×1470mm |
Machine weight | 7000kg |
Motor power | 5.5kw |
Effective width | 3000mm |
Sheet size | 2950mm×1500mm |
Roller diameter | 480mm |
Effective printing area | 2700mm×1470mm |
Machine weight | 7500kg |
Motor power | 7.5kw |
Effective width | 2500mm |
Sheet size | 2450mm×1650mm |
Roller diameter | 530 |
Effective printing area | 2200mm×1600mm |
Machine weight | 7500kg |
Motor power | 7.5kw |
Effective width | 2800mm |
Sheet size | 2750mm×1650mm |
Roller diameter | 530 |
Effective printing area | 2500mm×1600mm |
Machine weight | 8000kg |
Motor power | 7.5kw |
Effective width | 3000mm |
Sheet size | 2950mm×1650mm |
Roller diameter | 530 |
Effective printing area | 2700mm×1600mm |
Machine weight | 8500kg |
Motor power | 7.5kw |
