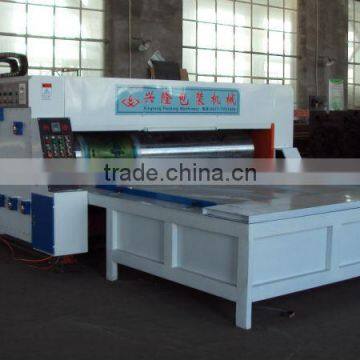

Multifunction Fruit Carton Box Making Machine
- Tianjin China
You May Like
Product Details
| Condition | New | Application | Other, Fruit package | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Power | 3.0-11kw | Place of Origin | Hebei, China | |
| Brand Name | XINGLONG | Model Number | YFQ |
Product Description
Specifications
Fruit box macking machine1. 45# steel gear induction hardend, wear-resistant
2. All roll surface with electroplated,antirust
YFQ Water base Flexo box printing machine
Main Technology Parameters:
(Model) |
(Roller diameter) | (Max feeding size) |
(Effective printing size) | ( speed) | (Motor power) |
YFQ-1800 | φ400mm | 1200*1750mm | 1200*1500mm | 0-60pcs/min | 3.0kw(3colors) |
YFQ-2000 | 1200*1950mm | 1200*1700mm | 3.0kw(3colors) | ||
YFQ-2200 | 1200*2150mm | 1200*1900mm | 4.0kw(3colors)) | ||
YFQ-2500 | 1200*2450mm | 1200*2200mm | 4.0kw(3colors) | ||
YFQ-2800 | 1200*2750mm | 1200*2500mm | 5.5kw(3colors) | ||
YFQ-3000 | 1200*12950mm | 1200*2700mm | 5.5kw(3colors) |
Model | Roller diameter | Max feeding size) | (Effective printing size) |
speed | (Motor power) |
YFQ-1800 | φ480mm | 1450*1750mm | 1450*1500mm | 0-60pcs/min | 4.0kw(3colors) |
YFQ-2000 | 1450*1950mm | 1450*1700mm | 4.0kw(3colors) | ||
YFQ-2200 | 1450*2150mm | 1450*1900mm | 5.5kw(3colors) | ||
YFQ-2500 | 1450*2450mm | 1450*2200mm | 5.5kw(3colors) | ||
YFQ-2800 | 1450*2750mm | 1450*2500mm | 7.5kw(3colors) | ||
YFQ-3000 | 1450*12950mm | 1450*2700mm | 7.5kw(3colors) |
Model | Roller diameter | Max feeding size |
Effective printing size |
speed | Motor power |
YFQ-1800 | φ530mm | 1600*1750mm | 1600*1500mm | 0-60pcs/min | 4.0kw(3colors) |
YFQ-2000 | 1600*1950mm | 1600*1700mm | 4.0kw(3colors) | ||
YFQ-2200 | 1600*2150mm | 1600*1900mm | 5.5kw(3colors) | ||
YFQ-2500 | 1600*2450mm | 1600*2200mm | 5.5kw(3colors) | ||
YFQ-2800 | 1600*2750mm | 1600*2500mm | 7.5kw(3colors) | ||
YFQ-3000 | 1600*12950mm | 1600*2700mm | 7.5kw(3colors) |
Standard configurations:
1.Use the combination chain style on feeding table.
2.Adopt planet style digital electrical adjustment of 360 degrees whatever operating and stop quickly and accurately.
3.Ink roller can be detached automatic from printing plate to avoid damage the printing plate.
4.Inker roller equipped the separately turn device to prevent ink dried when machine stop.
5.Pneumatic lock, electrical divides
6. With Pneumatic diaphragm pump to supply ink.
7. Used crosshead slipper to adjust print gap, prolong gear use life, low voice.
8. Main transmission gears are made by 45#steel after high frequency quenching.
9. Drive part adopts sprinkle lubricating system, improve the precision and serve life of machine.
10. Adjust carton height synchronous (means adjust four slotting knife together)
11. Put printing plate type: adhesive type and hang-plate type depend on you.
12. Colors: usually 1-5colors (any color is ok) or more colors depend on you.
13. Options: Adjust slotting, creasing together.
