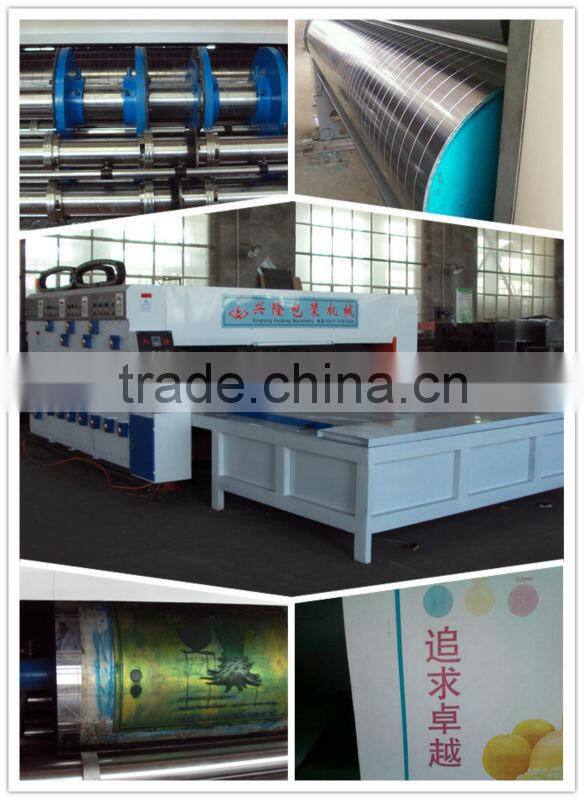

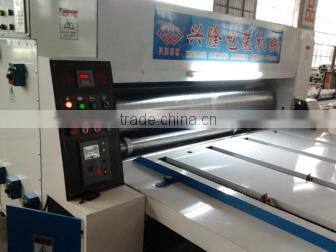

Two Color Printing Rotary Die-cutting Machine for Cartons

FOB Price

US$ 32,000 - 64,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Semi-Automatic
Usage	Paper Forming Machine	Place of Origin	Hebei, China
Brand Name	XINGLONG	Model Number	XL
Voltage	380v 50Hz	Power(W)	7.5 kw
Dimension(LWH)	53.52 m	Weight	5500 kg
Certification	CE	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Main Technology Parameter:

Parameters name	unit	Parameters
Max. paper coverage area	Mm	2700*1600
Effective printing area	Mm	2400*1600
Min finish size	Mm	500*400
Thickness of printing plank	Mm	6
Max speed	Piece/min	120
Economy speed	Piece/min	90
Frequency conversion power of main motor	Kw	15-30
Topping precision	Mm	0.75

Function and Characteristics:

1.Use the combination chain style on feeding table.

2.Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly and accurately.

3.Inking roller can be detached from printing plate automatically to avoid damage the printing plate.

4.Inking roller equipped idling running device to prevent ink from being dried when machine stop.

5.Pneumatic lock, electrical divides

6. With Pneumatic diaphragm pump to supply ink.

7. Automatic ink distributing.

8. Main transmission gears are made by 45#steel after high frequency quenching.

9. Drive part adopts spray lubricating system, improve the precision and serve life of machine.

10. The height of carton can be adjusted synchronous.
