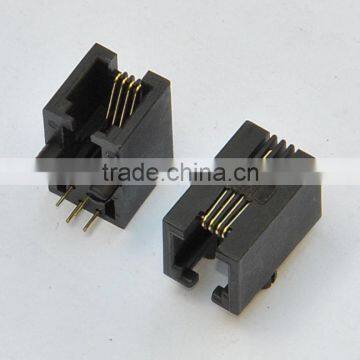

RJ11 female Telephone Modular Jack/socket
US$ 0.03 - 1.98
/ Piece
1000 Pieces(Min. Order)
- Shanghai or Ningbo
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CSCE | |
| Model Number | SC301-5321-4P |
Product Description
Specifications
1.Side Entry RJ11 telephone Modular PCB Jack/socket/connector with 0.45mm phosphor bronze contact wire2.UL,RoHS,ISO9001
Description:
Side entry RJ11 telephone modular PCB jack
Without shielding, round pin
Number of ports: 1
Number of position: 4
Number of contacts: 2,4
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
1.Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"
Environmental
Working Temperature:-40°C to 70°C
| RJ45/RJ11 Connector specifications: | |
| Application - LAN | ETHERNET |
| Gender | Jack |
| No. of Ports | 1X2,1X4 |
| Number of position | 10 |
| Number of contacts | 2,4, 6,8 or 10 |
| Housing | PBT(UL94-V0),PA66(UL94-V0),PA46 (UL94-V0) |
| Contact Material | 0.45mm phosphor bronze gold plating over nickel |
| Shielding housing | 0.20-025mm thickness brass with nickel plated |
| Shield EMI Tabs | Option |
| LED | Option |
| Gold Plating | Gold Flash,3u",6u",15u",30u" or 50u" |
| PCB Mount Angle | Side entry |
| Insertion Force | 2.2KG.F max |
| Retention Strength | 7.7KG.F min between jack and plug |
| Durability | 750 mating cycles min |
| Working Temperature | -40°C~+70°C |
| Storage Temperature | -10°C~+40°C Relative Humidity |
| RoHS Compliant | Yes |
| Electrical: | |
| Current Rating | 1.5 Amps |
| Voltage Rating | 125VAC |
| Insulation Resistance | 500 MΩmin |
| Contact Resistance | 30 mΩmax |
| Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
| RJ45 connector Application: | |
| Laptop | Telephone |
| Hub | Router |
| Printer | Broadband Switche |
| Server | Fitness Equipment |
| LCD and TV panel | Point of Sales Terminal |
| Set Top Box | Vending Machines |
| Surge protector | Television |
| Telecom box ATM Machine | Home Security |
| Security System | Copier |
| Video DVD product | |
