Home > Products > Aviation Obstruction Light > White Medium intensity Type A tower aviation obstruction light

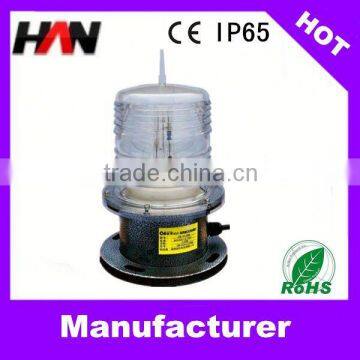

White Medium intensity Type A tower aviation obstruction light
- Shenzhen Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
White Medium intensity Type A low intensity obstruction lights
-
White Medium intensity Type A lightning tower light
-
White Medium intensity Type A marine solar obstruction light
-
White Medium intensity Type A high efficiency marine solar obstruction light
-
HAN-012H High Intensity flashing signal light Type B
-
HAN-012H High Intensity marine solar obstruction light Type B
Product Details
Input Voltage(V) | AC220 | Lamp Power(W) | 30 | |
Color Temperature(CCT) | Cool White | IP Rating | IP65 | |
Certification | CE | Emitting Color | White | |
Lamp Body Material | Aluminum Alloy | Light Source | Induction Lamps | |
Place of Origin | Shaanxi, China | Brand Name | HAN | |
Model Number | HAN-012MW |
Product Description
White Medium intensity Type A tower aviation obstruction light
1.tower aviation obstruction light
2.High intensity
3.Xenon tubes
4.warranty:5 years
5.IP65
tower aviation obstruction light
Specifications
Item | Medium intensity aviation obstruction light Type A |
Model | HAN-012MW |
Operating voltage | AC220V |
Power consumption | ≤30W |
Flashing frequency | 20-60 times/min |
Light source | Xenon tubes |
Peak light intensity | 2000-20000cd(±25%) |
Beam angle | 360° horizontal beam angle |
>3° vertical beam spread | |
Lifespan | >100,000,00 times |
Emitting color | White |
Method of synchronization | Same power supply voltage signal mode |
Overall size | 180*278 mm |
Installation size | 153*4*M10 mm |
Ingress protection | IP65 |
Lighting Protection level | 10KA |
Operating temperature | -55°C-55°C |
Net Weight | 2.2KG |
Wind load | 80m/sec |
warranty | 5 years |
tower aviation obstruction light
Main Features
1. Integral structure, protection lever of IP 65.
2.GPS synchronizing function is available.
3.SUS304 stainless steel, lens of tempered glass;resistance to corrosion.
4.Light source adopts high quality xenon tubes
5.Automatic identification sync signal
6.Suitable to harsh environment.
7.Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
Application
Widely used in various fields of the Air Force, civil airports and obstacle free airspace, helipads ,iron tower,
chimney ,ports, wind power plants, bridge and city high-rise buildings where require aviation warning .
tower aviation obstruction light
About us
Han Industrial Group Limited is an integrated high-tech enterprise with solar and LED technology. Xi' An Greenwood New Energy Technology Co., Ltd. is the subsidiary of Han Industrial Group Limited.
We are specialized in the research, development and manufacture of Led lights, solar lights and solar generating systems and so on. Our products are widely applied to lighting, sea navigation, solar road stud , solar warning light , coal mine, gas station and other professional industrial fields.
