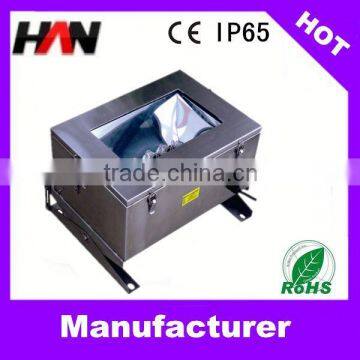

HAN-012H High Intensity explosion proof aviation obstruction lighting Type B
- Shenzhen Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HAN-012H High Intensity telecommunication tower light Type B
-
HAN700 Solar Flash/steady aviation obstruction lights
-
HAN700 Solar Flash/steady obstruction light for road works
-
HAN700 Solar Flash/steady high power obstruction light
-
HAN700 Solar Flash/steady navigation light
-
HAN700 Solar Flash/steady ip65 wall mounted led
Product Details
| Input Voltage(V) | AC220 | Lamp Power(W) | 150 | |
| Color Temperature(CCT) | Cool White | IP Rating | IP65 | |
| Certification | CE | Emitting Color | White | |
| Lamp Body Material | Aluminum | Light Source | Induction Lamps | |
| Place of Origin | Shaanxi, China | Brand Name | HAN | |
| Model Number | HAN-012H |
Product Description
HAN-012H High Intensity explosion proof aviation obstruction lighting Type B
1.explosion proof aviation obstruction lighting
2.High intensity
3.Xenon tubes
4.warranty:5 years
5.IP65
Specifications
Item | High intensity aviation obstruction light Type A | |
Model | HAN-012H | |
Operating voltage | AC220V | |
Power consumption | ≤150W | |
Flashing frequency | 40-60 times/min | |
Light source | Xenon tubes | |
Peak light intensite | Background Luminance | Peak light intensity |
≤50Lux | 2000cd(±25%) | |
50-500Lux | 20000cd(±25%) | |
>500Lux | 270000cd(±25%) | |
Beam angle | 120° horizontal beam angle | |
3-7° vertical beam spread | ||
Lifespan | >100,000,00 times | |
Emitting color | White | |
Method of synchronization | Same power supply voltage signal mode | |
Overall size | 490*410*320 mm | |
Installation size | 460*370*12 mm | |
Ingress protection | IP65 | |
Lighting Protection level | 10KA | |
Operating temperature | -55°C-55°C | |
Net Weight | 12KG | |
Wind load | 80m/sec | |
warranty | 5 years | |
Main Features
explosion proof aviation obstruction lighting
1. Integral structure, protection lever of IP 65.
2.GPS synchronizing function is available.
3.SUS304 stainless steel, lens of tempered glass;resistance to corrosion.
4.Light source adopts high quality xenon tubes
5.Automatic identification sync signal
6.Suitable to harsh environment.
7.Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
Application
explosion proof aviation obstruction lighting
Widely used in various fields of the Air Force, civil airports and obstacle free airspace, helipads ,iron tower, chimney ,ports, wind power plants, bridge and city high-rise buildings where require aviation warning .
About us
explosion proof aviation obstruction lighting
Han Industrial Group Limited is an integrated high-tech enterprise with solar and LED technology. Xi' An Greenwood New Energy Technology Co., Ltd. is the subsidiary of Han Industrial Group Limited.
We are specialized in the research, development and manufacture of Led lights, solar lights and solar generating systems and so on. Our products are widely applied to lighting, sea navigation, solar road stud , solar warning light , coal mine, gas station and other professional industrial fields.
