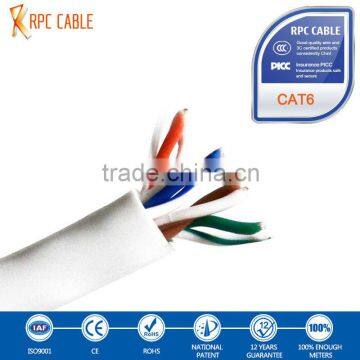

ethernet cable 23awg krone cat6 utp
- Guangzhou/Shenzhen/Foshan
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Canton RPC | |
| Model Number | krone cat6 utp | Type | Cat 6 | |
| Number of Conductors | 8 |
Product Description
Specifications
ethernet cable 23awg krone cat6 utp1.305 meter
2.cat6
3.cu
4.rohs,ce,iso9001
1) Conductor: 0.63 copper
2) pure copper material
3)past fluke test
Product Description
1. Standards
- 4Pairs Cable
- Standards:
ANSI/TIA/EIA-568-B Category 5e
ISO/IEC-11801
2.Construction:
1)Conductor: 22AWG(0.63mm) Copper
- 2)Insulation: HDPE
- 8Cores/4pairs 0.92-0.98mm
- Pair 1: Orange/ White Orange
- Pair 2: Blue/ WHite Blue
- Pair 3: Green/ White Green
- Pair 4: Brown/ WHite Brown)
3) Rip Cord: Yes&Optional
4)Jacket: PVC/LSZH
3.Electrical characteristics :
Electrical characteristics for Cat 6 UTP Property | Nominal Value | Tolerance | Unit |
Characteristic impedance @ 100 MHz | 100 | ± 15 | Ω |
Nominal characteristic impedance @ 100 MHz | 100 | ± 5 | Ω |
DC-Loop resistance | ≤ 0.188 |
| Ω/m |
Propagation speed | 0.64 |
| c |
Propagation delay | 4.80-5.30 |
| ns/m |
Delay skew < 100 MHz | < 0.20 |
| ns/m |
Capacitance at 800 Hz | 52 |
| pF/m |
Corner frequency | ≤ 57 |
| kHz |
Max tensile load, during installation | 100 |
| N |
Wire size | AWG-24 (0.205 mm² ) |
|
|
Insulation thickness | 0.245 |
| mm |
Maximum current per conductor | 0.577 |
| A |
Temperature operating | -55 to +60 |
| °C |
package
factory workshop
fluke test
certification
