} cat5 kablo

Specifications

} cat5 kablo

Reference Standard:

YD/T 1019-2001, TIA/EIA-568B&ISO/IEC 11801

.Application :

1.Computer Network Cabling Project

2.Broadband Network Communication

3.Digital ISDN Network and ATM 155Mbps Network

4.Ethernet Network

5.Audio and Data Transmission

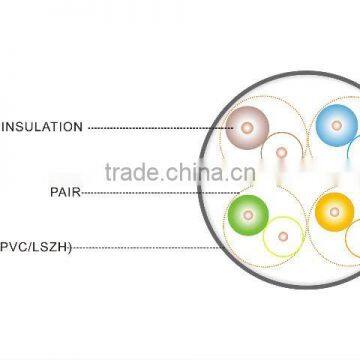

Cable construction

ConductorMaterial: solid bare copper

Number of pairs: 4 pairs

AWG: 24awg

Conductor diameter: 0.50±0.003mm

Insulation Material: HDPE and FRPE

Diameter: 0.924±0.005mm

Average thickness: 0.212mm

Minimum point thickness: 0.2095mm

Sheath:Material: HDPE

Nominal diameter: 6.5±0.2mm

Average thickness: 1mm

Minimum point thickness: 0.9mm

  Mechanical Characteristics

Maximum Pulling Force:50 N

Minimum Bending Radius :45 MM

Nominal Weight:40 KG/KM

Operating Temperature: -15Deg C ~ +70 Deg C

Installation Temperature: +5 Deg C ~ +40 Deg C

 Flammability Grade: CMX, CM, CMG, CMR

 Electrical characteristics

Packing:305meters/pulling box

Our advantage:

We can do :

1. Supply all the type products in this optical fiber cable industry .
2. Quality guarantee ,I S O 9 0 0 1 .
3. .According to the truth,Accept different  international trade terms

We can guarantee :

1. Enjoy professional team service ,Response within one hour no matter before service and after service
2. Put  all of our experiences and technology of communication in our products
3. Concentrate on optical fiber cable and do the professional enterprise forever
