indoor cat5 pvc copper coated alumium 0.5mm buy ethernet kablo

Specifications

indoor cat5 pvc copper coated alumium 0.5mm buy ethernet kablo

brief introduction:

Category 5 is a basic element of cate line of products designed for high speed networkd applications (eg.GigaEthernet 1000Base-T). 4 pair utp with different pitch for each pair. Small outside dameter, high flexibility. Available in 305m lengths and packed in carton boxes for easy transportation and laying in troughs. The cable does not feed fire and goes out when the source of fire is

  good sales

indoor cat5 pvc copper coated alumium 0.5mm buy ethernet kablo  best quality and best service

nstruction

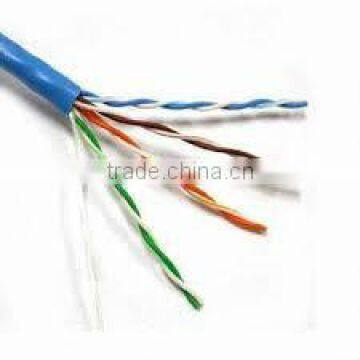

1)Conductor: you can see it in more detail in the above picture

* material: copper coated alumium

 * Conductor Diamter.:0.5mm

 * Quantity:4 twisted pairs

 Blue/white-blue

 Green/white- green

 Orange/white-orange

 Brown/white-brown

 Insulation:

*material:high density polyethylene

* insulationDiameter:<=1.0mm

* Average thickness: 0.4325 mm

*  Minimum point thickness: 0.43mm

 4)sheath:

 * material:  PVC or LSZH

  * Nominal Diameter:<=5.50mm

  * Average thickness: 0.55mm

  * Minimum point thickness: 0.45mm

5)Mechanical Properties:

*Conductor insulation material: PE

*Cable jacket material: halogen-free, flame-retardant material

*Application area: dray as well as humid rooms

*Temperature (moved): 0°C to 50°C

*Operating temperature: -20°C to +60°C

*Min. bending radius for one-time bending: 4×O.D.(not less than 15 times of the outer diameter when the outer diameter is not more than 40mm and not less than 20 times of the outer diameter when the diameter larger than 40mm.)

*Min. bending radius during installation: 8×O.D.

We are manufacturer, warmly welcome yourCUSTOM CABLE ASSEMBLY REQUEST

6)Cable assembly specification:

7). Transmission Properties: ( at 20°C)

1. Telecommunications

2. Local Area Network (LAN)

9)packing: 305m/box,2 box/carton

10)testing:

11)certificate

         we have won and adopted TLC and so on quality managment system to stricly control the quality of communication cable and its accessories.Oure products are well received by China Telecom, China Netcom, China railcom,CPN, Specail network and Commerical Netcom.

12)export market:

 mainland China, africa oceania eastern Europe , southeast Asia,South America and so on.

                                  Do you know our producing concept?

13) producing concept: * We promote the concept of green environmental protection, we produced the jumper wire is low smoke zero halogen and environmental .

                                                     * Meanwhile,we follow the principle of   human base, quality first, keep improving, competitive price , satisfactory service ,cost reduction, well effiency, on  time delivery
