V-Type Efficient Mixer
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Mixer Type | Other, moment | |
| Product Type | Detergent Powder | Application | Other, veneer case | |
| Additional Capabilities | Granulating | Place of Origin | Shanghai, China | |
| Brand Name | MINHUA | Model Number | VH | |
| Max. Loading Capacity | 5-2000L | Voltage | 220V | |
| Power(W) | 1500W | Dimension(L*W*H) | 2200x2000x2700mm | |
| Certification | ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speeUse&Features

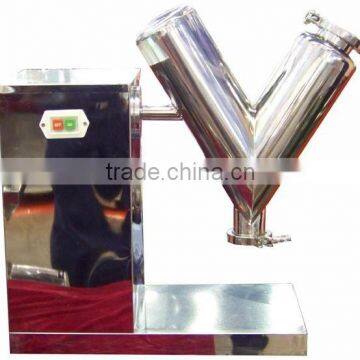

This machine has the following distinguishing features, no blind eagle in the cylinders, no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing
Technical Parameters
Specification | 0.005M3 | 0.15M3 | 0.3 M3 | 0.5 M3 |
Capacity(kg) | 1.5 | 37.5 | 75 | 125 |
Power(kw) | 0.25 | 0.8 | 1.5 | 1.5 |
Overall Size(mm) | 560 270 560 | 1600 1100 1700 | 2100 1600 2400 | 2200 2000 2700 |
Weight(kg) | 55 | 250 | 480 | 500 |
Contact Us
- Minhua Pharmaceutical Machinery Co., Limited
- Contact nameJack Meng Chat Now
- Phone86-21-64204193
- Address228, No. 6111, Zhongchun Road
